Reverse Light Indicator Switch Kit M&M Shifter

M&M Shifter reverse light switch installation

• Disconnect battery cable to ensure no electrical problems occur
• Remove 8 Allen screws (7/64) to have access to the base of the shifter
• Use (5/32) Allen and remove side plates
• Remove 10/32 screw from shift lever (Picture 1)

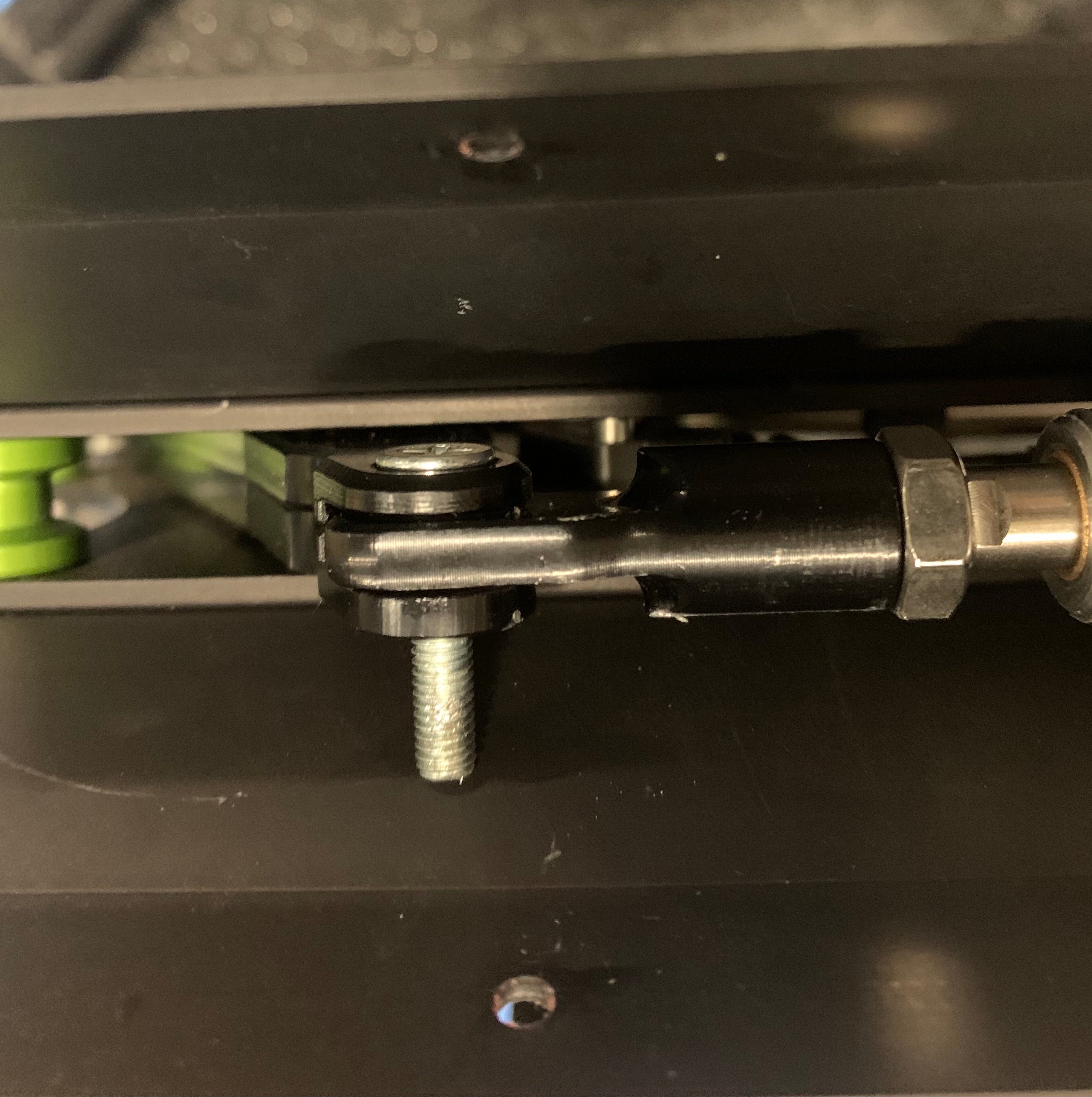

• Install supplied 10/32 screw 1” and tighten

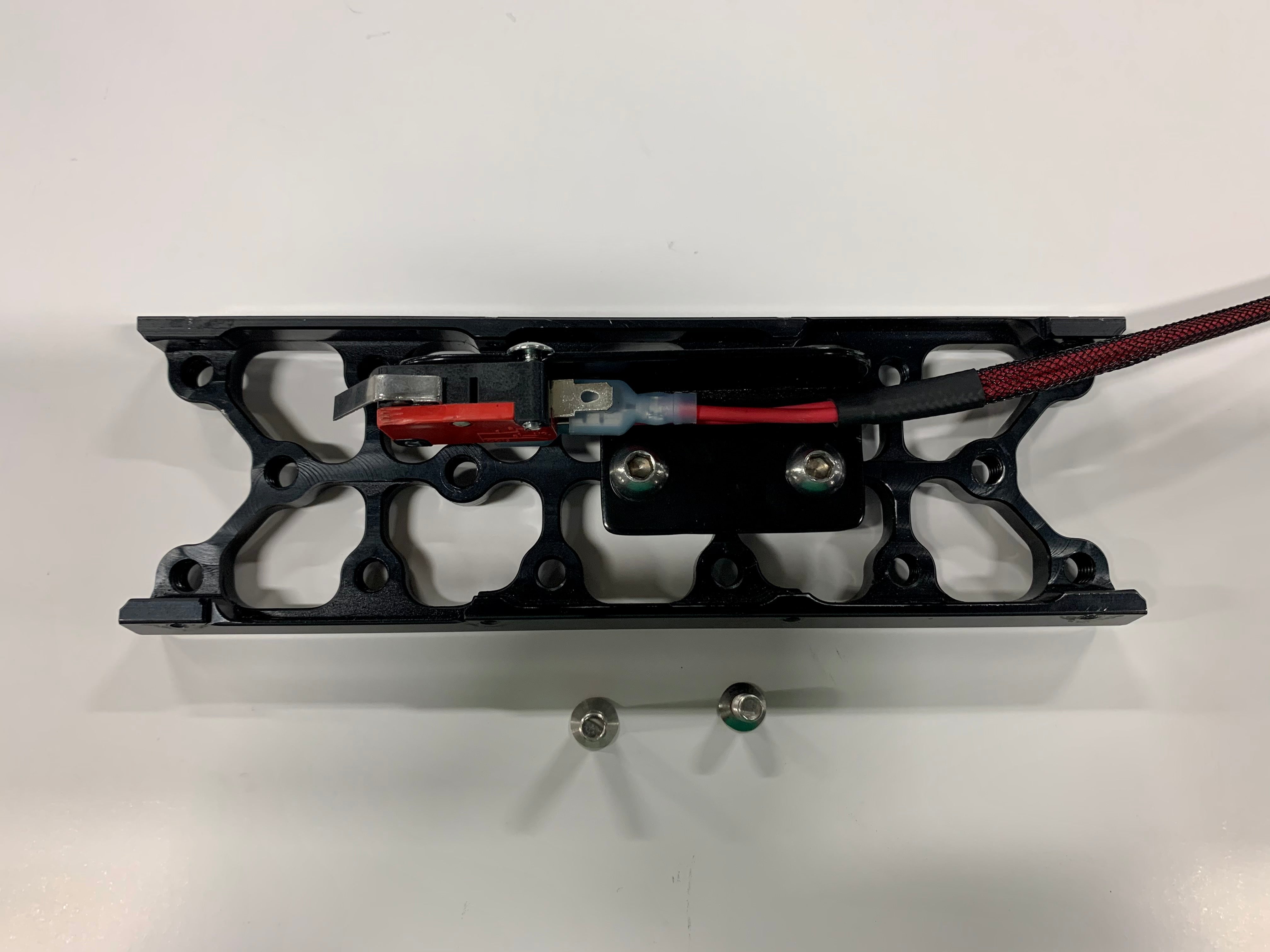

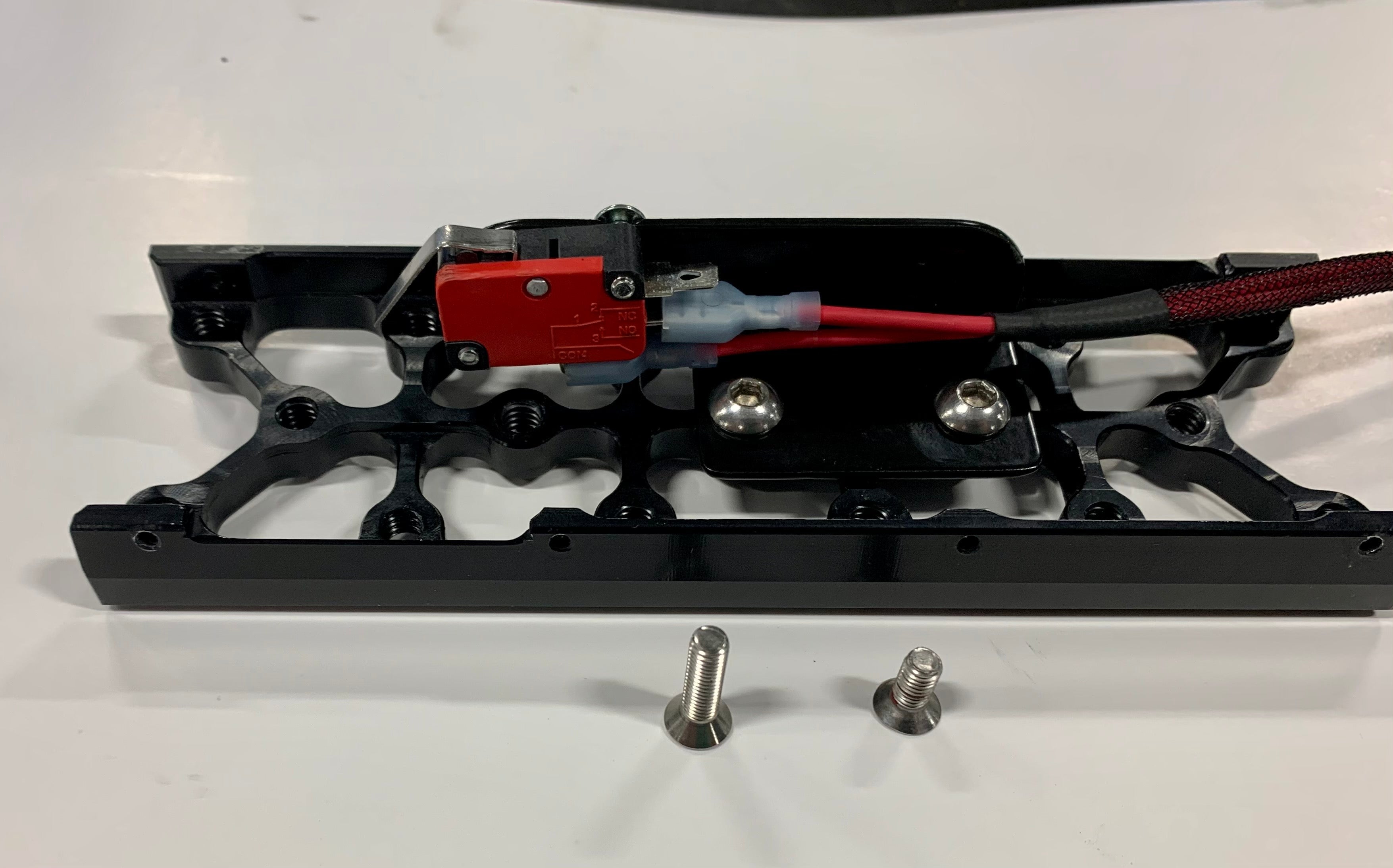

• Install supplied switch and mount to the base with supplied ¼-20 cap screws in specified location (picture 2)
• Some applications air cylinder will need to be clocked for clearance of the air relief port
• Install the wiring connectors supplied in kit
• Install weather pack to reverse light wires (hot wire and power to light)
• Reassemble and check for proper engagement (minor adjustments may be necessary using the slotted holes in mount)
• Once final adjustments are made reassemble shifter and be sure to tighten all bolts/screws (do not over tighten)

• If lights require more than 15amp use the supply wire to trigger a relay that can supply sufficient power to the lights
• It is recommended to install fuse in line of power to switch
