MAG'S EXTREME MUSTANG UPPER TORQUE BOXES

***Due to the lack of chromoly tubing there could be a 2-4 wk build time on the uppers**

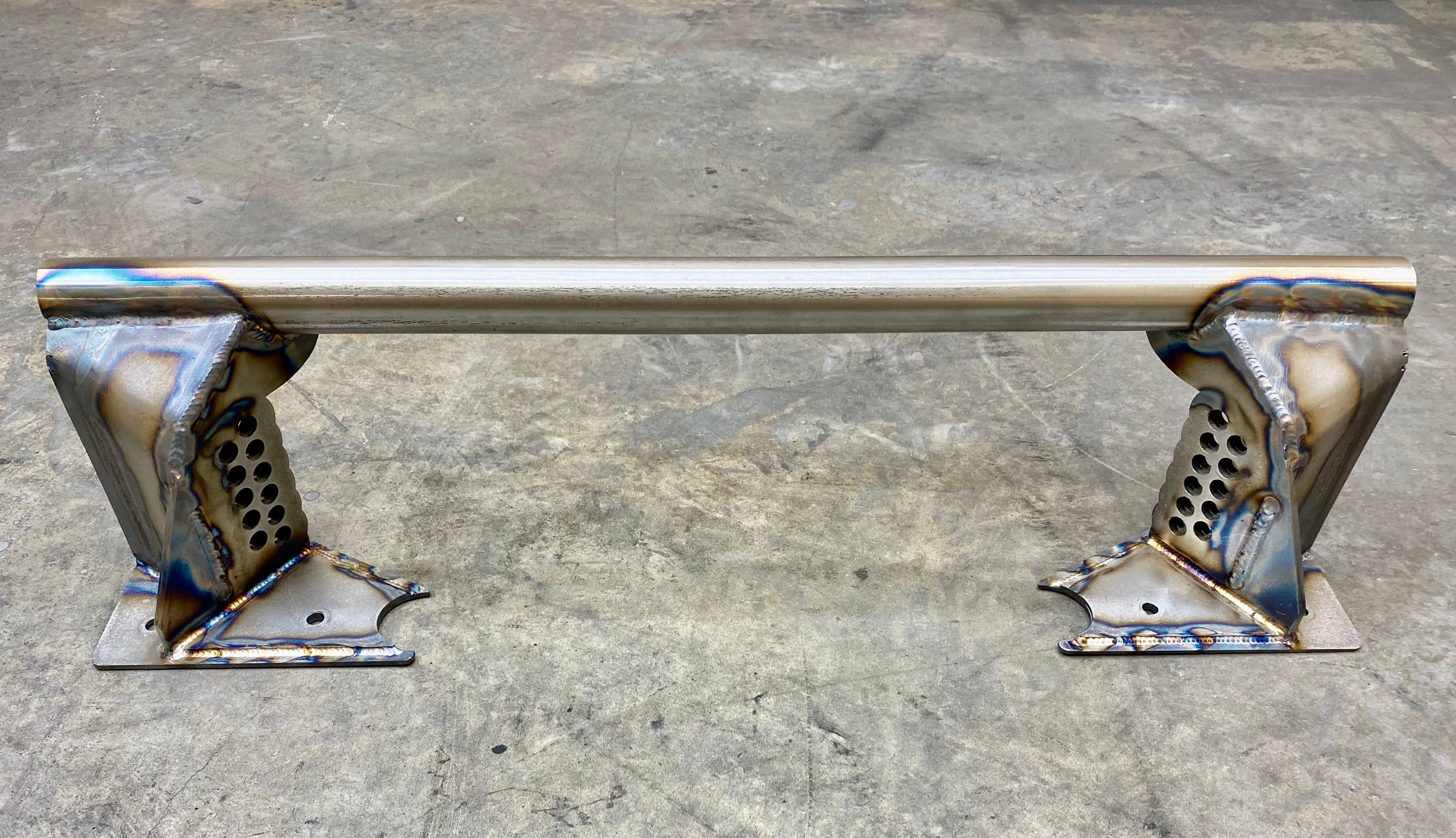

MAG'S EXTREME Adjustable IC Fox Body , SN95 and New Edge Upper Torque Box By MAG'S FAB WORX

The finest/strongest Mustang upper torque box replacement available

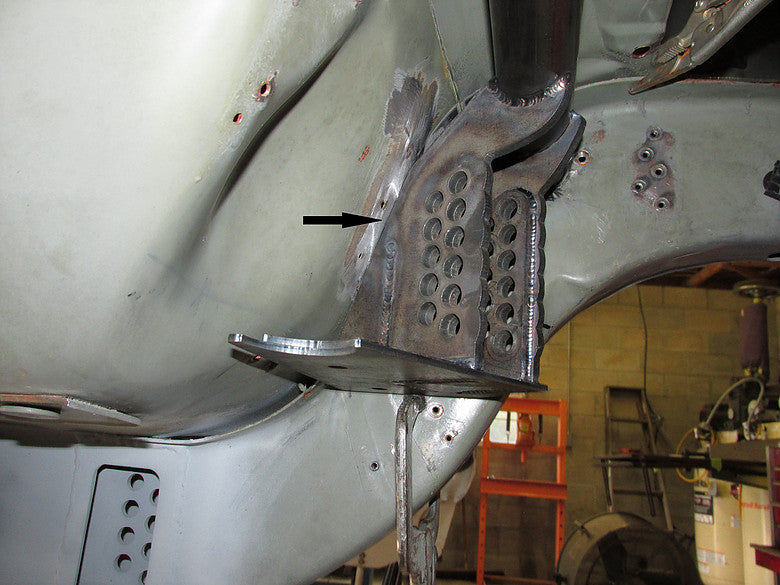

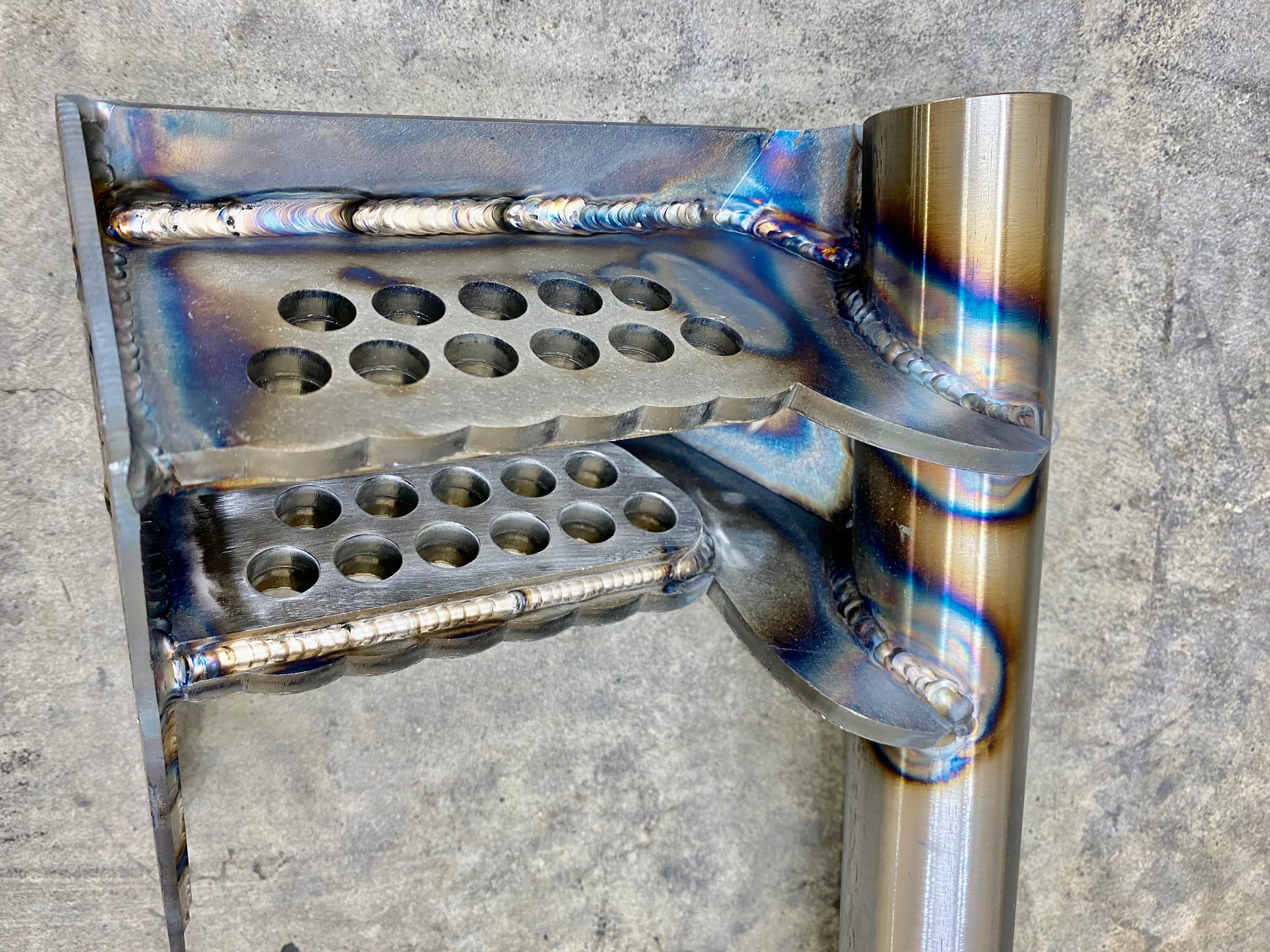

Our lightweight extreme duty box features 11,  1/2" adjustment holes with .300" promod hole spacing, which is important with the Mustangs' short upper control arms. We use .250" Chrome Moly doublers to reinforce the holes for high HP applications. We supply mounting hardware consisting of a 3/4" dia DOM rod end sleeve, and Chrome moly spacers to center/locate the rod end in the box. Our hardware works with 1/2 or 3/4 rod ends. Our unique interlocking design (see arrows in pics) ensures the tight, hard to reach areas are welded; not like some boxes that are only welded along the outer edges. We designed the box so it can be completely welded around the box perimeter for increased weld surface area. The box's plated and gusseted design allows it to be trimmed to fit if necessary to allow for cars with damage to the mounting area. The box is jig and fixture built/ tig welded and profiled to fit right out of the box. Our plated and gusseted design (we dont use a horizontal tube across the bottom) allows you to tie it in to the cage/chassis anyway needed to compliment your style/level of build. You dont have to be boxed in or constrained by a piece of manufacturer installed tube that may be in the wrong place for your build. You can use a straight piece of tube vertical (see pics) for non SFI spec cages or tie it in to the lower x member on your 25.3 or 25.5 spec chassis/cage so it becomes an integral part of your chassis, not an add on after thought. You can use the tie in tubes that go down to the lower 25.3 lower x member as the rear frame rail spec portion of the cert requirements, and then simply extend them back to the 'chute mount tube/rear chassis x member to complete the spec. . We designed the box so during the install it goes up to the rail, and back against the floor to make install a breeze (with a few simple measurements). Boxes come with hardware and detailed install instructions.

JCR CHASSISWORKS NO LONGER MANUFACTURES/SELLS THE JCR LOWER  AND UPPER TORQUE BOXES FOR THE MUSTANG. WE HAVE SOLD THE PRODUCTION LINE AND RIGHTS TO MAG's FAB WORX. THEY CAN BE REACHED AT (662) 255-6052 FOR INFO AND ORDERS. YOU CAN EXPECT THE SAME QUALITY AND SERVICE FROM MAGS!

       The JCR boxes are THE ORIGINAL  non-OEM style/configuration replacement box. Do not fall for inferior copies! Our boxes are in many of the biggest name, fastest, record setting, class winning cars on the planet. They have been .99X 60' on a  275 radial
