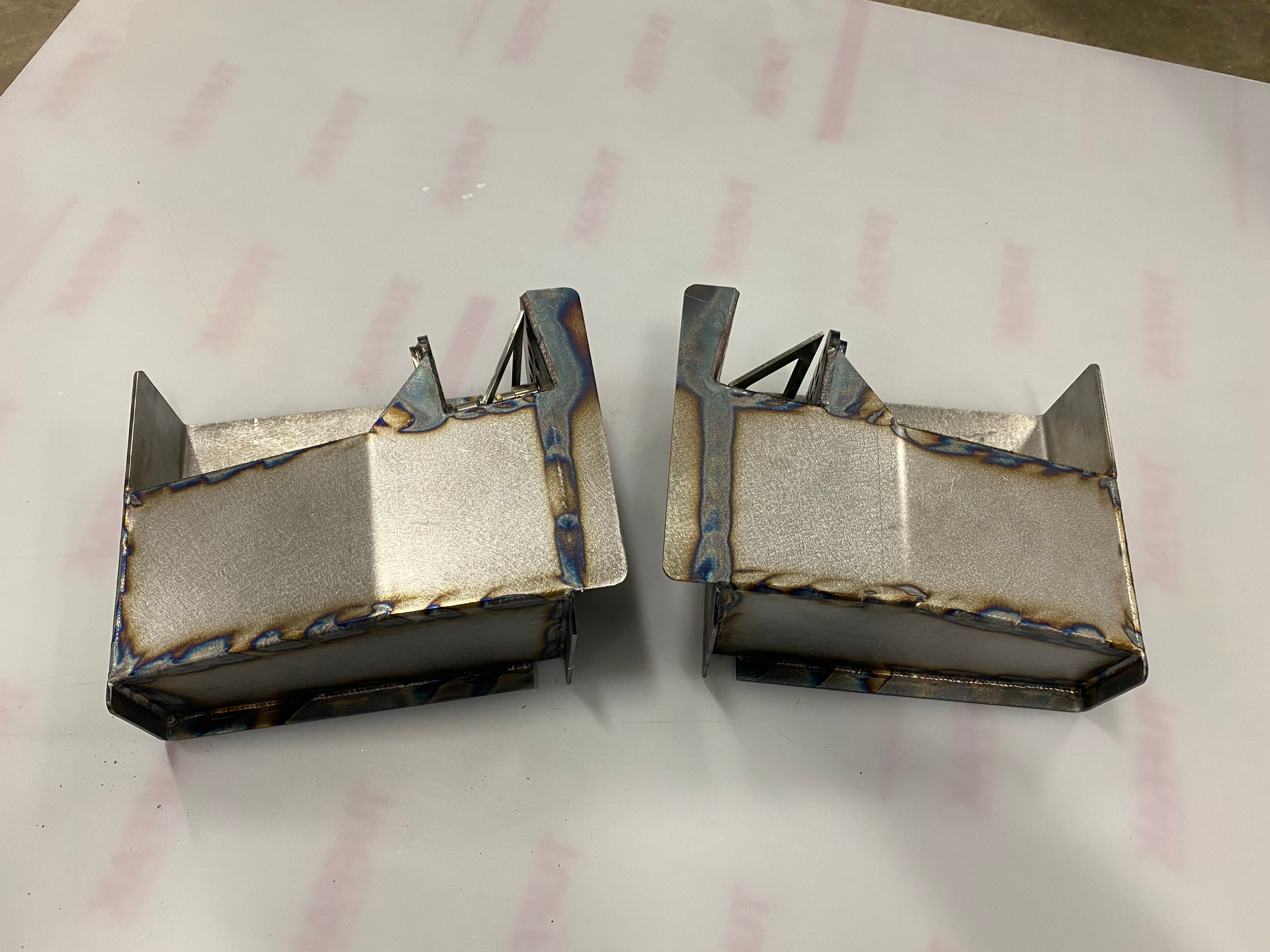

MAG'S EXTREME MUSTANG UPPER AND LOWER TORQUE BOX COMBO
- Regular price
- $1,425.00
- Regular price
-
- Sale price
- $1,425.00
- Unit price
- per
Vendor : MAG'S FAB WORX
Product Type :
***Due to the lack of chromoly tubing there could be a 2-4 wk build time on the uppers**

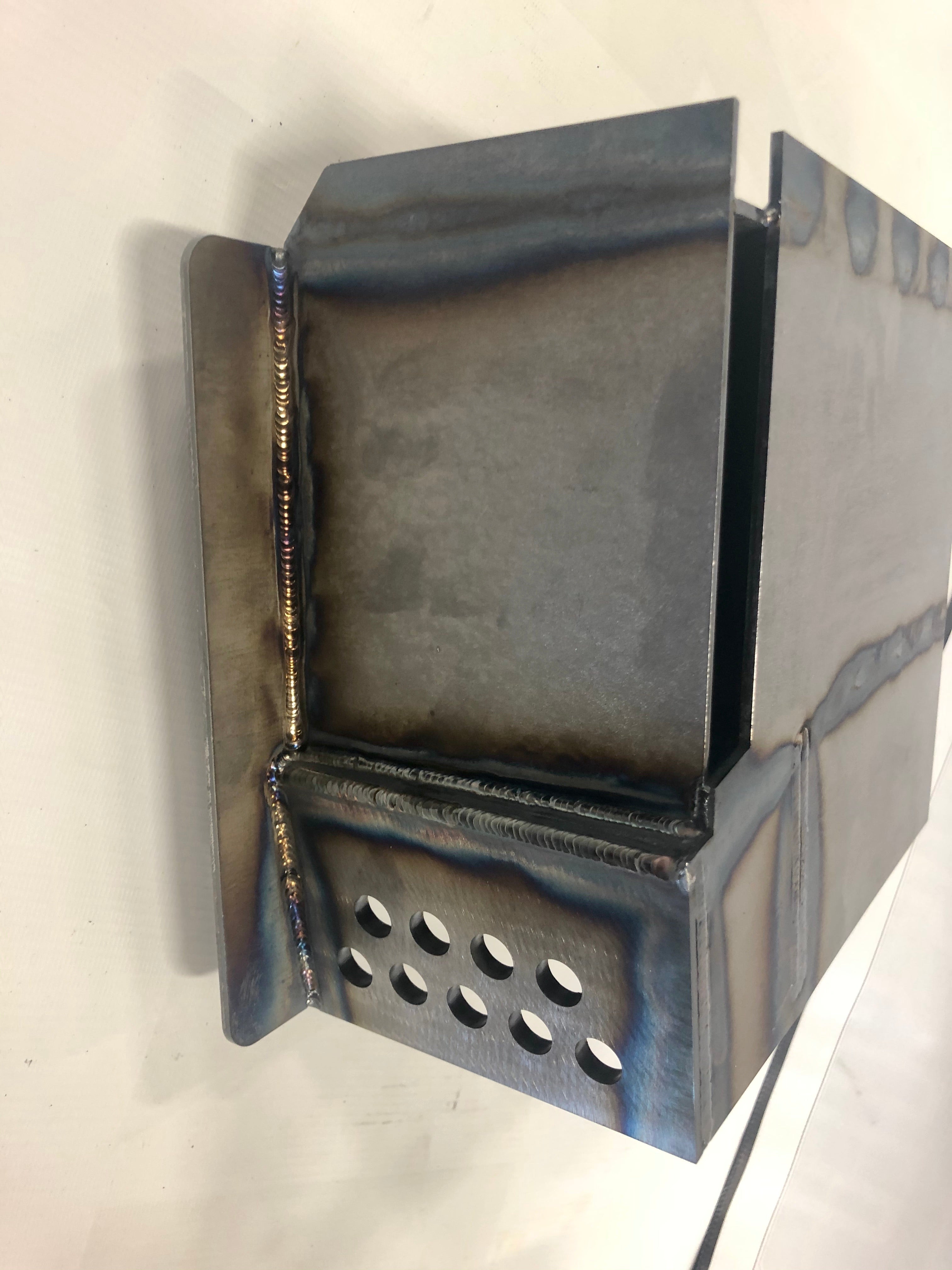

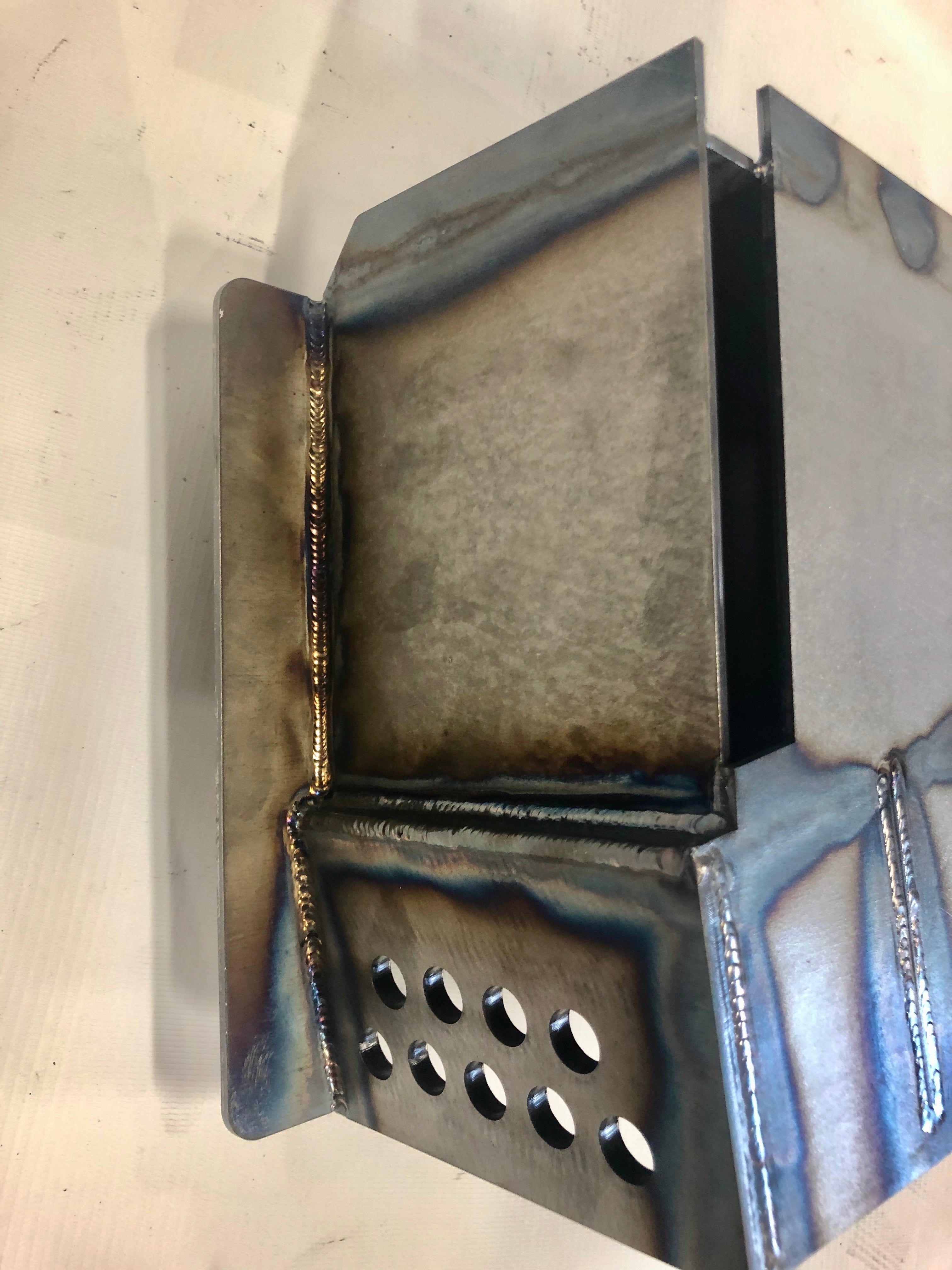

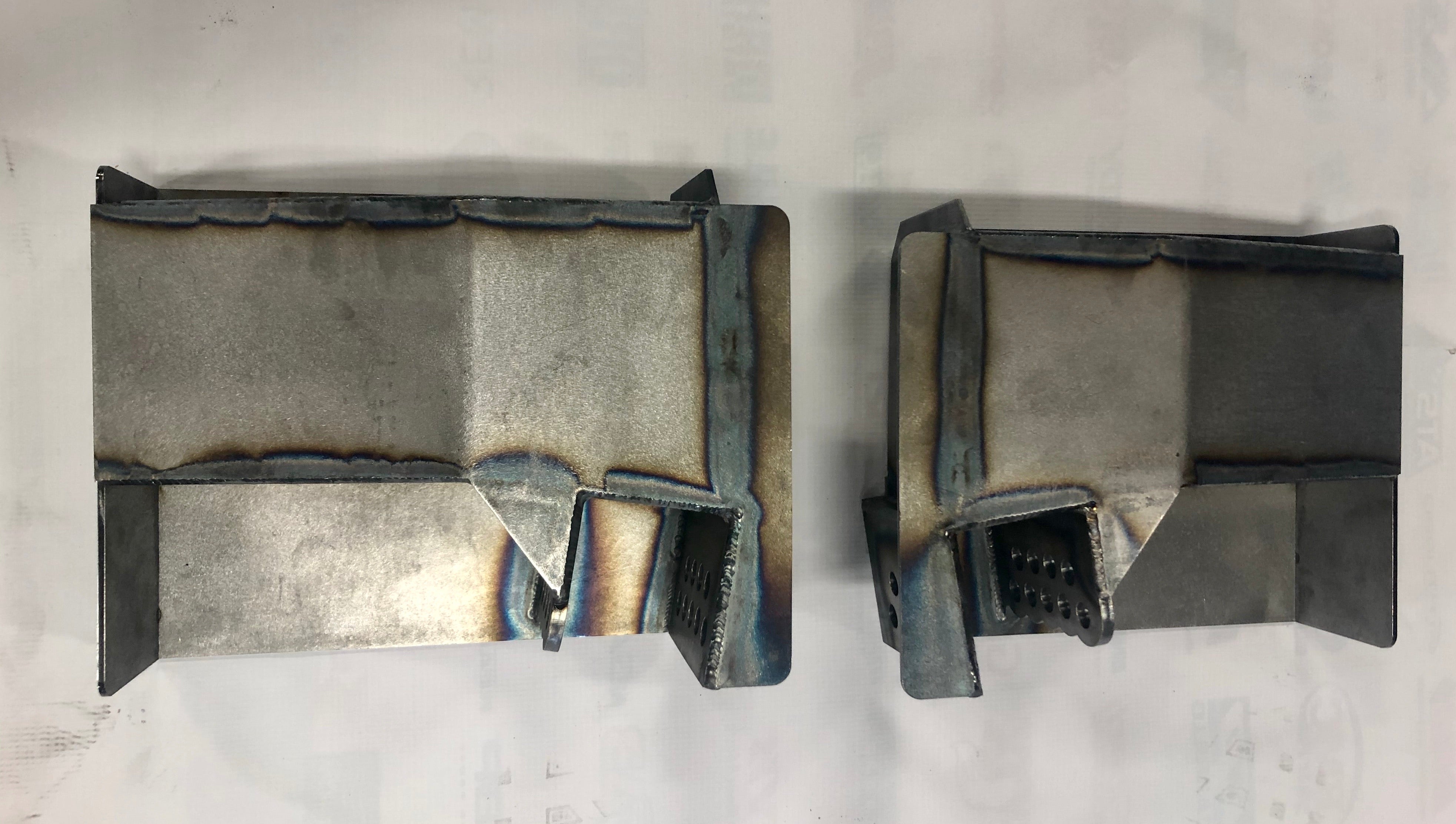

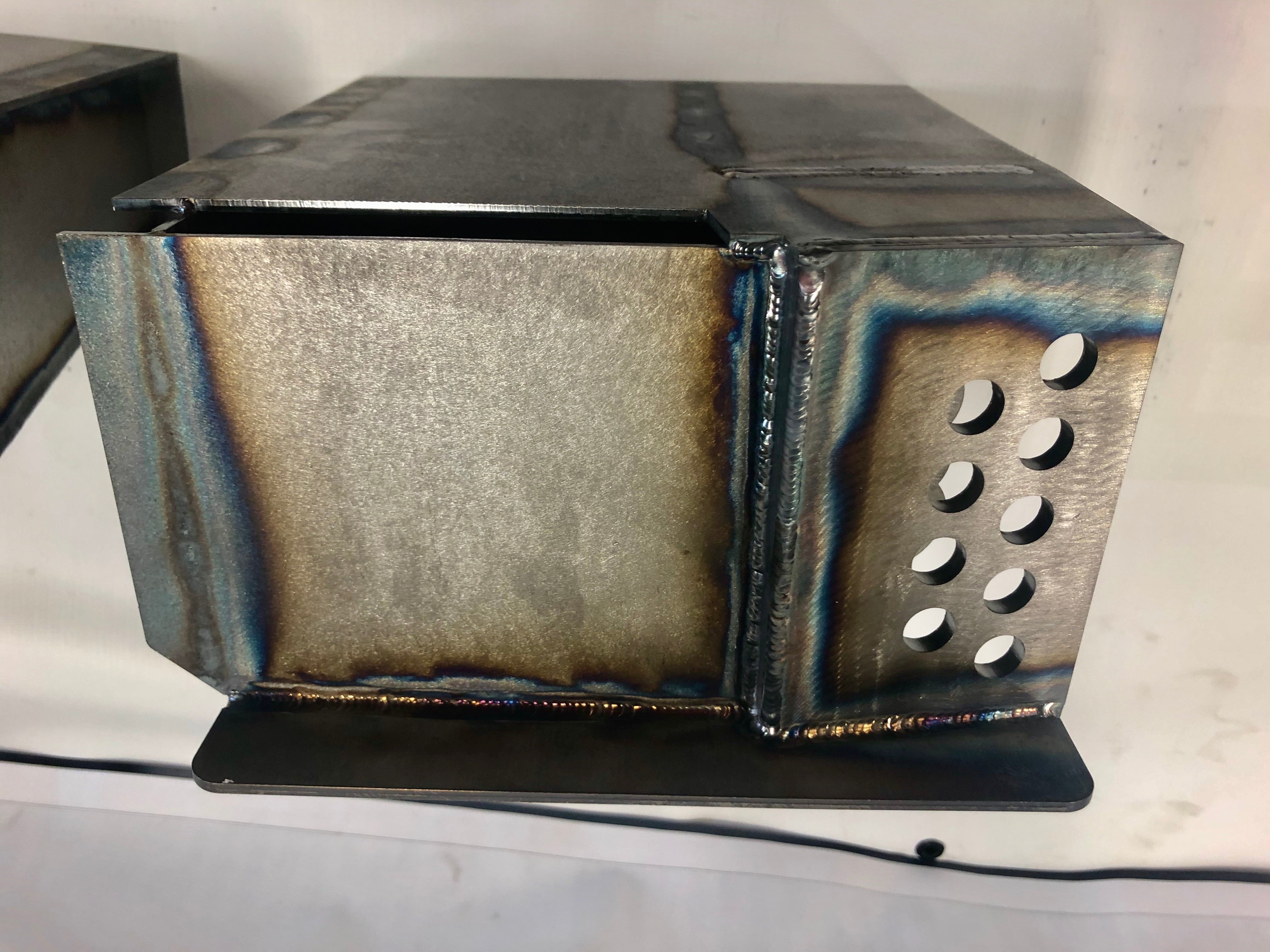

Adjustable Instant Center PRO BOX by MAG'S FAB WORX
The finest/strongest Mustang replacement Torque box available

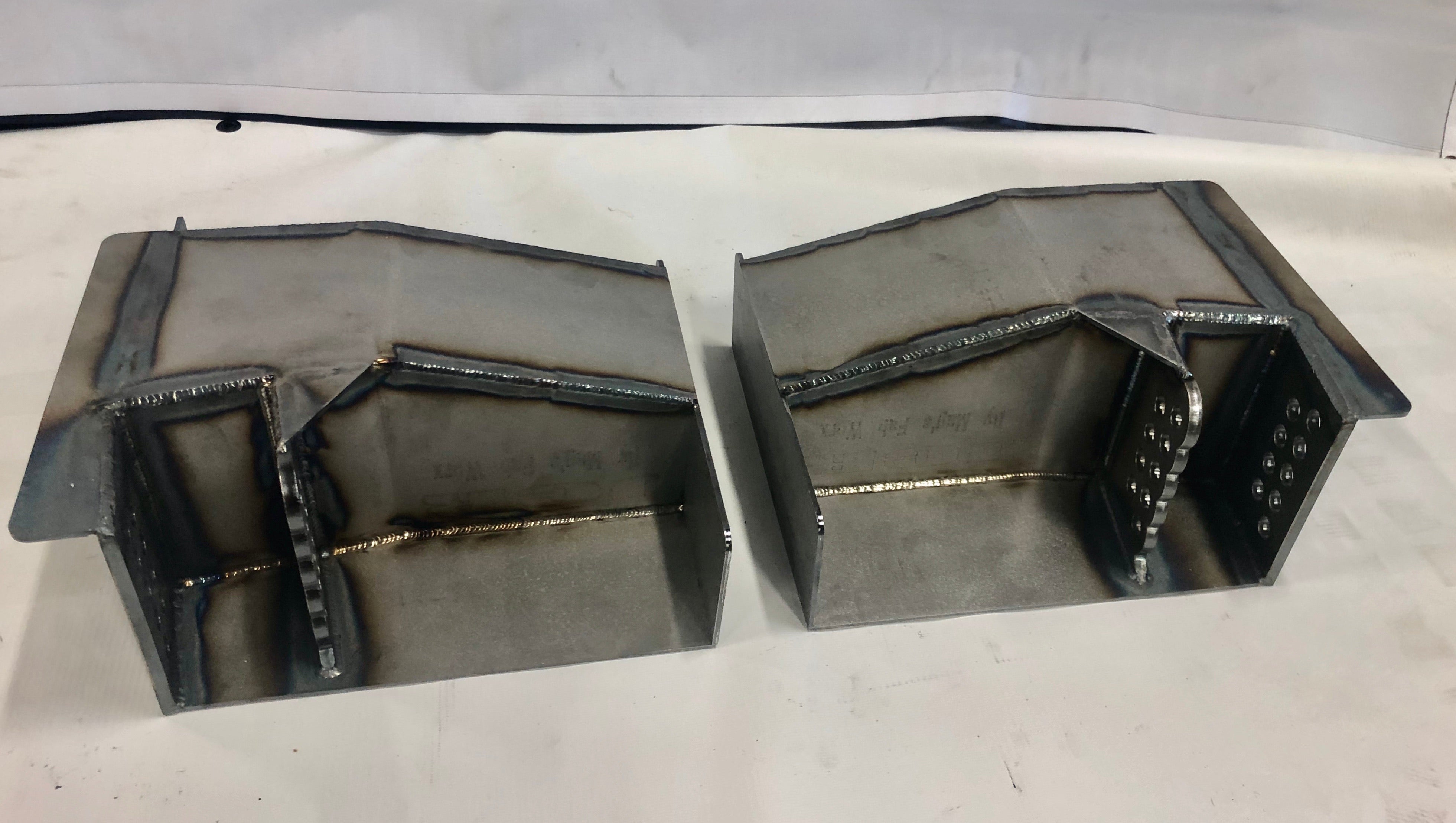

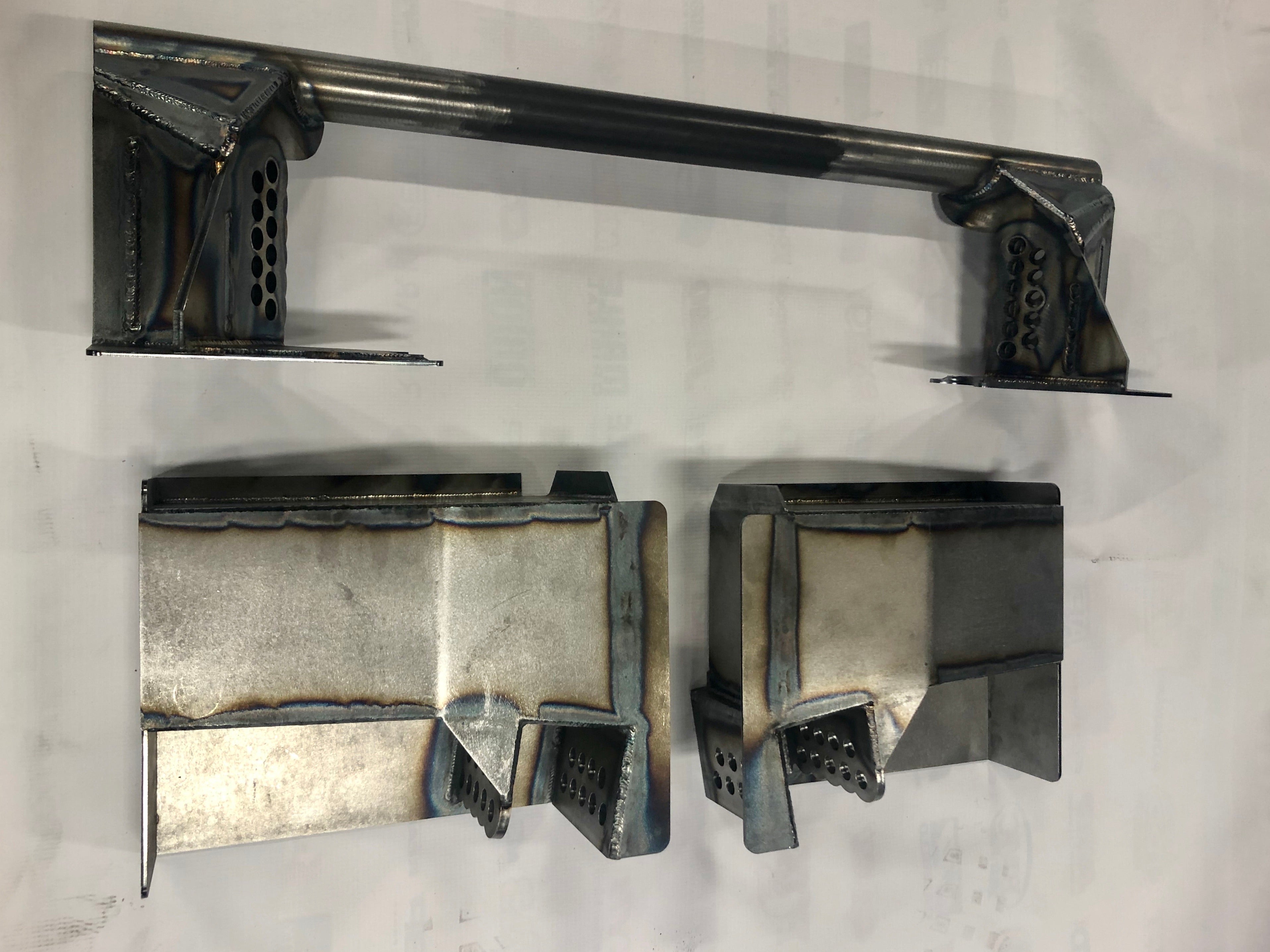

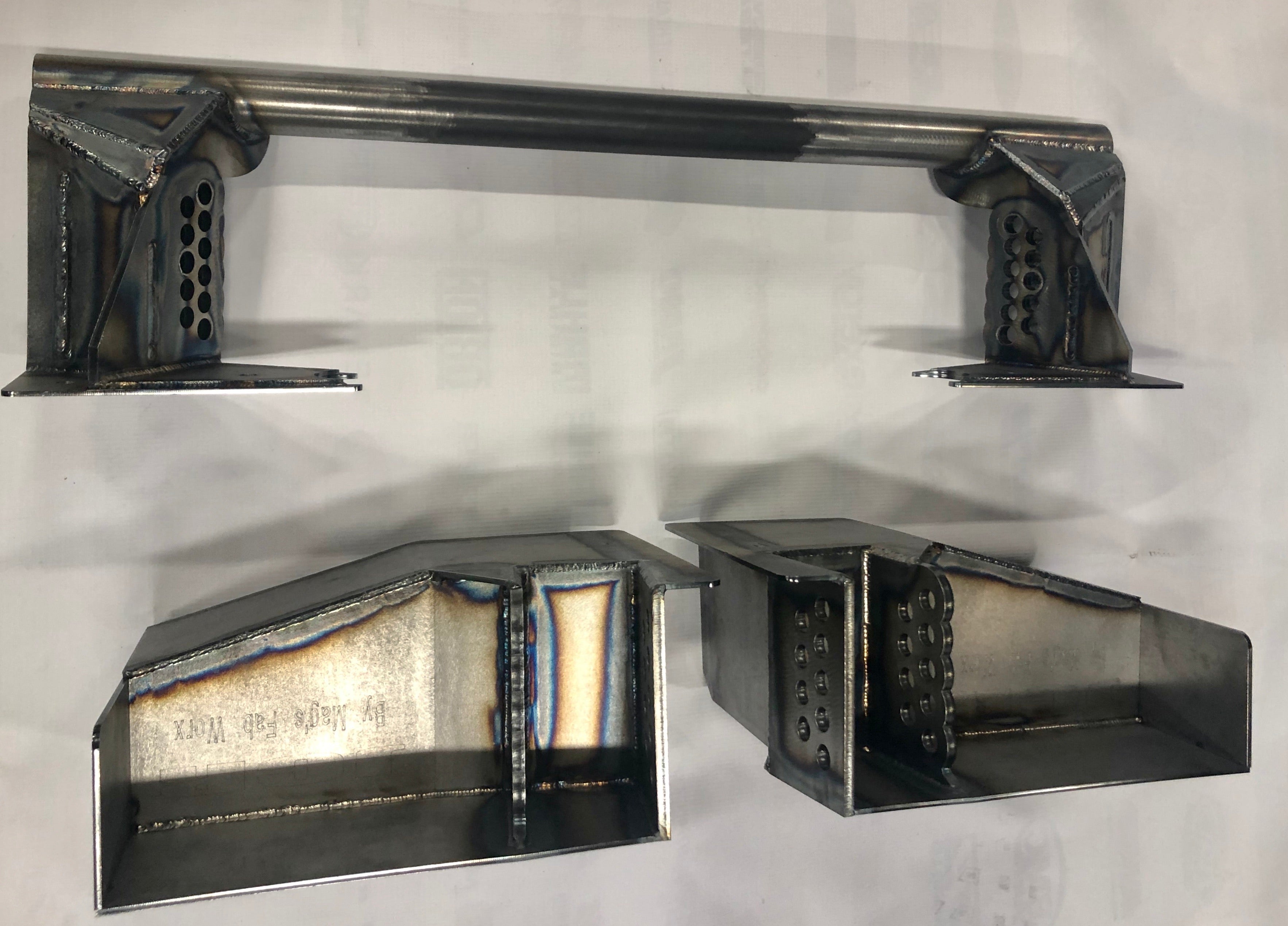

Some of the features include: THIS KIT INCLUDES UPPER AND LOWER TORQUE BOXES
-
Laser cut from .125” mild steel and features .250 Chrome Moly adjustment brackets.
-

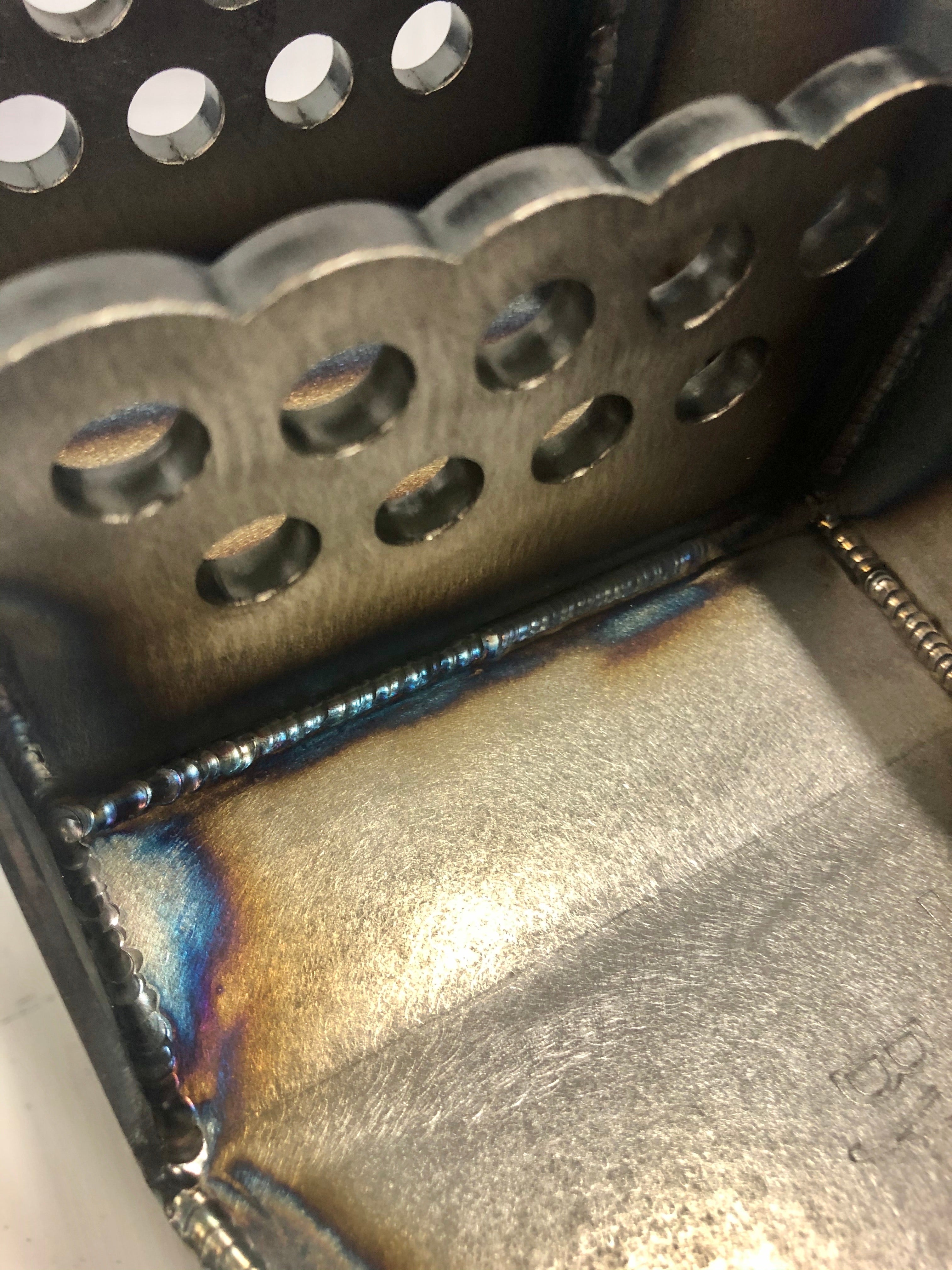

Completely tig welded in a jig/fixture to assure quality and fit.
-

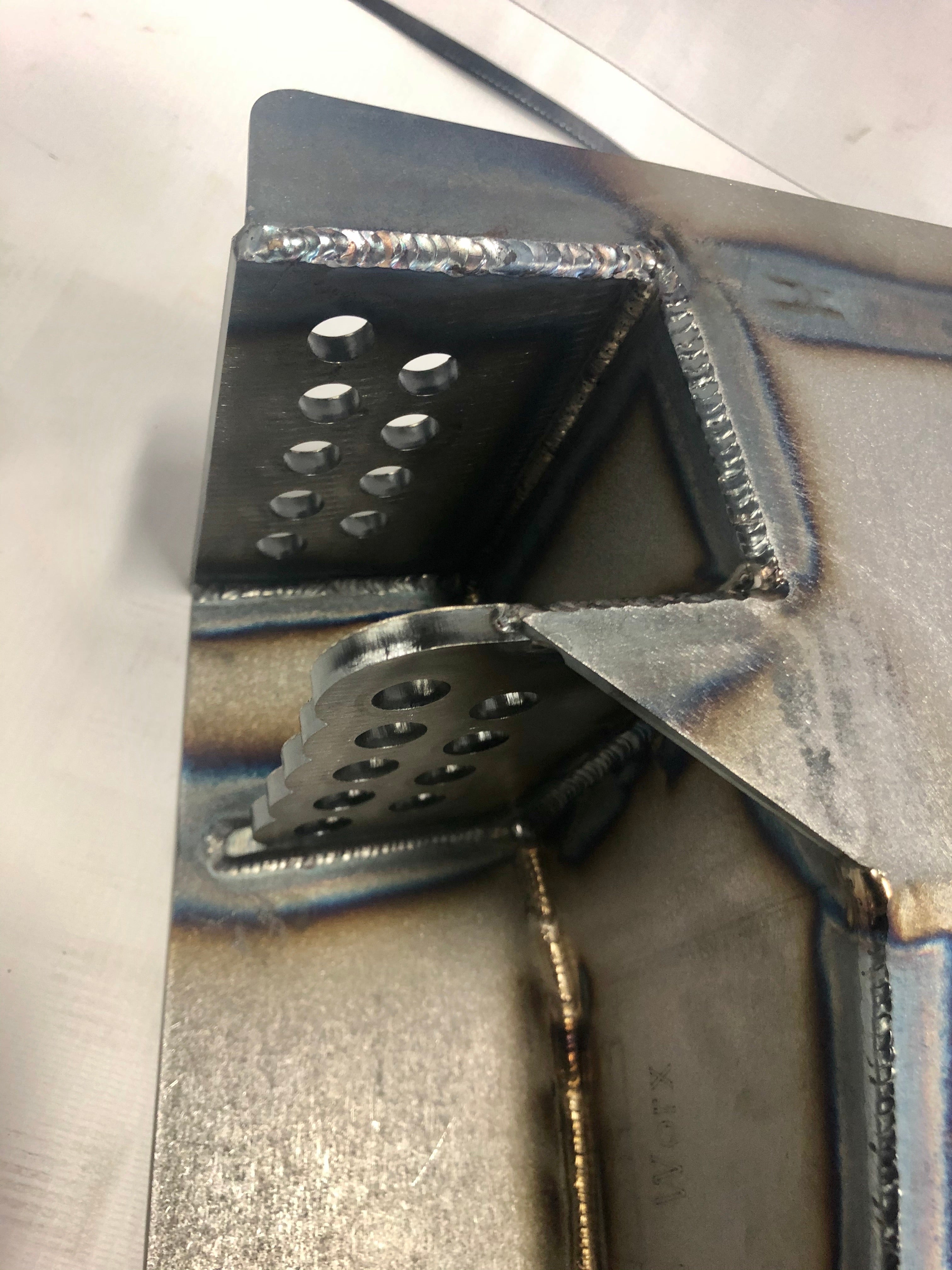

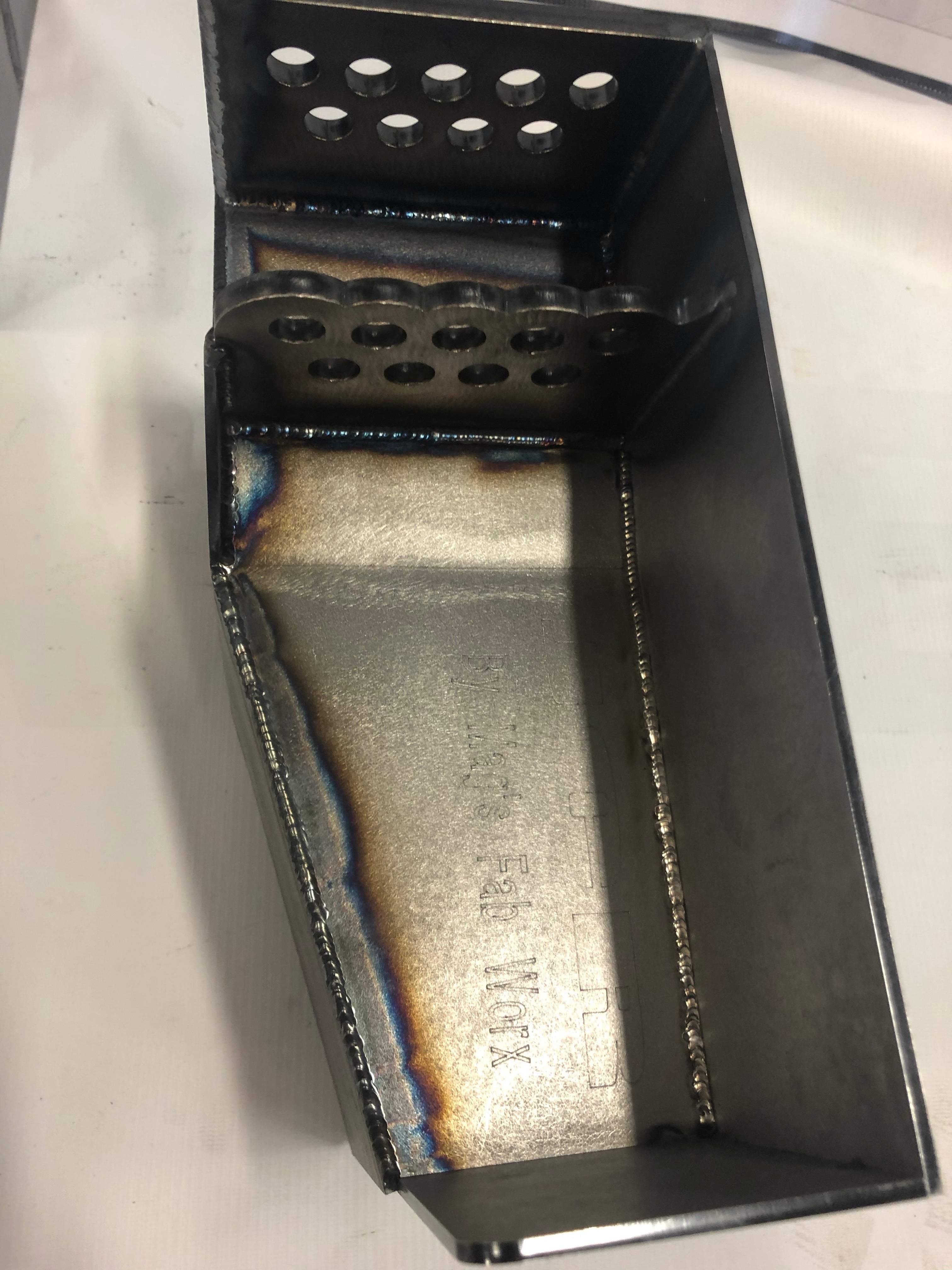

9 available ½” adjustment holes to fine tune your instant center.
-
The center hole is in the stock location for class rules that require stock mounting points.
-

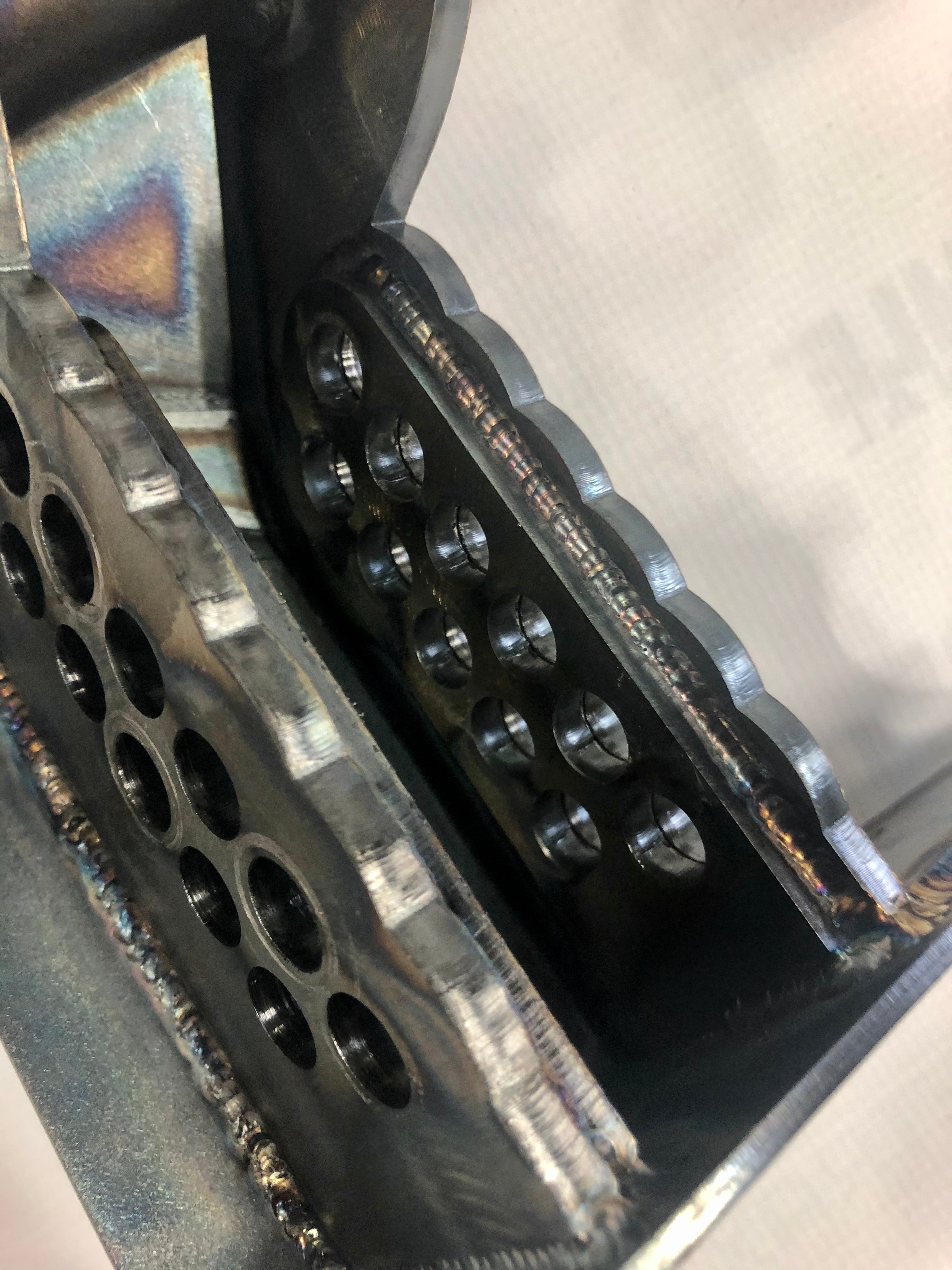

Exclusive open design adjustment brackets allow easy Instant Center adjustments and set-up.
-
Laser cut adjustment holes for precise tolerance.
-

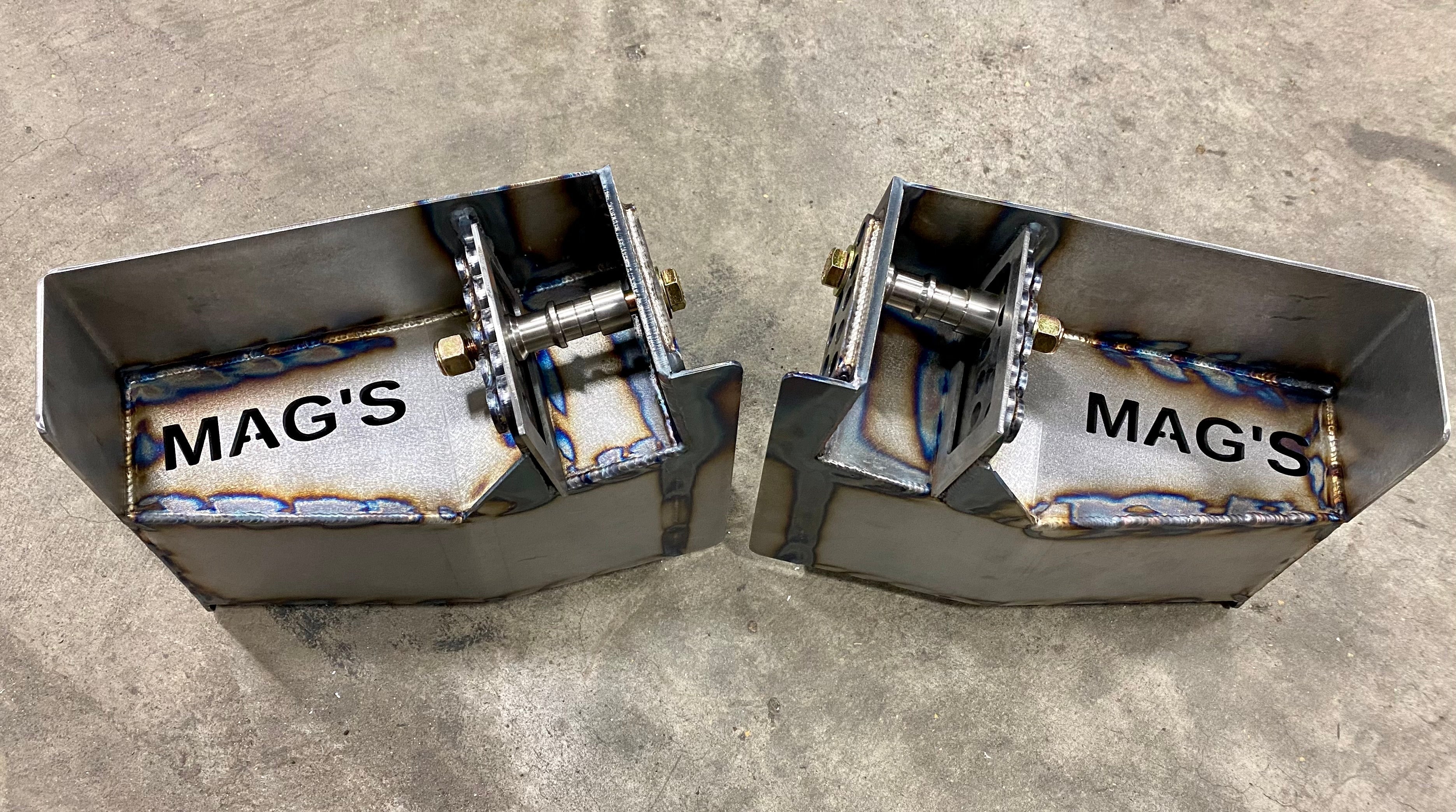

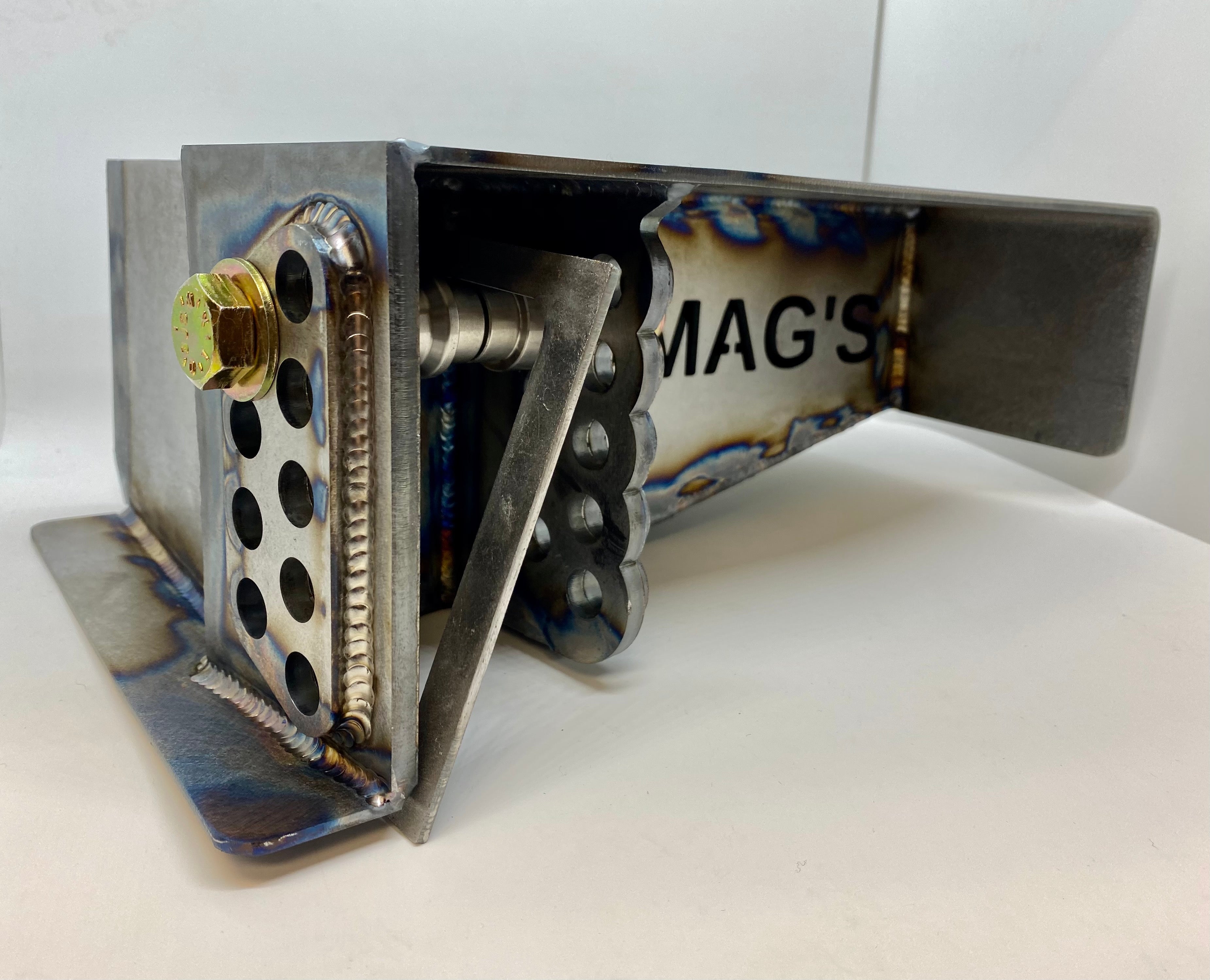

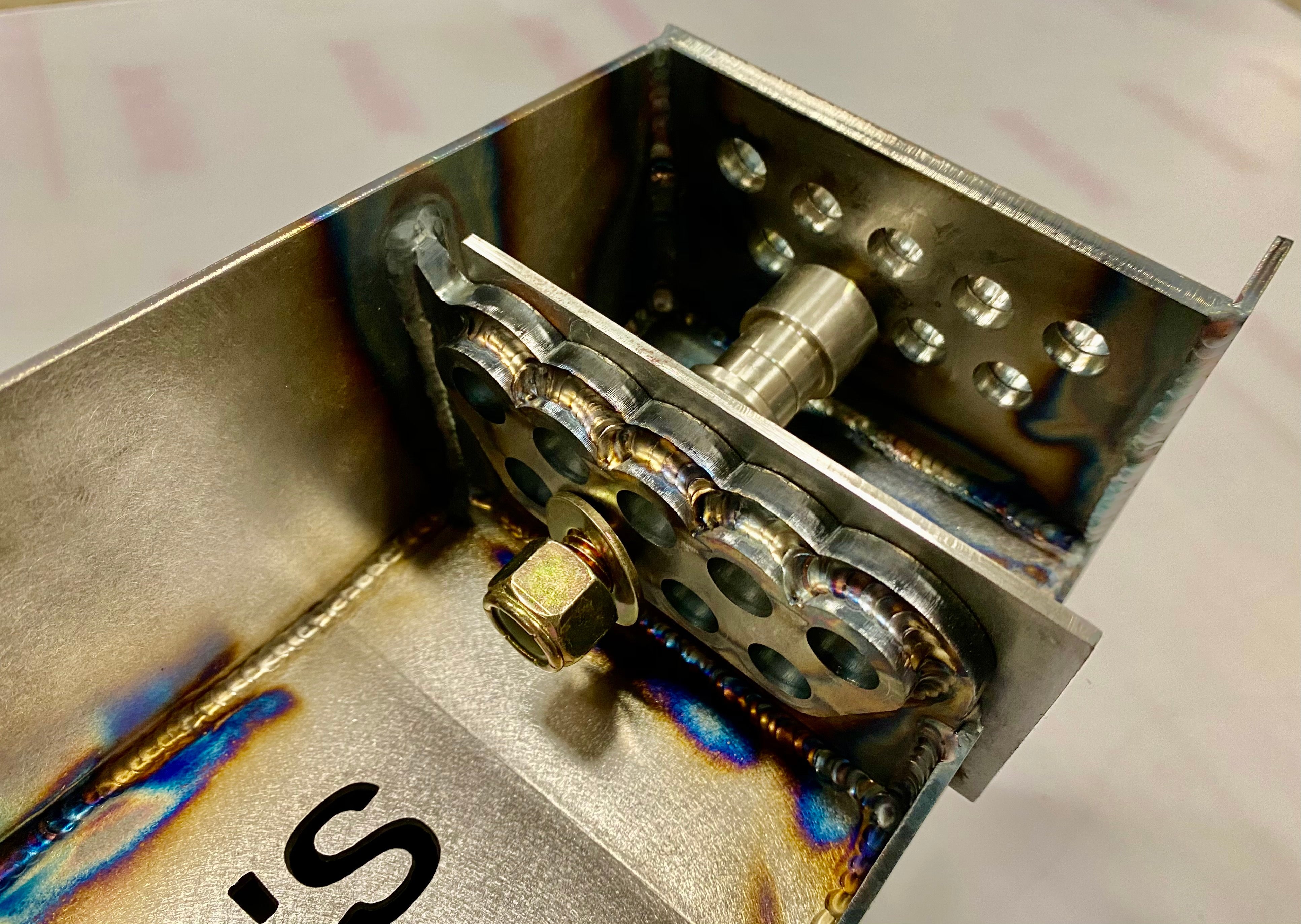

Included hardware: ½” grade 8 bolts with AN washers and lock nuts, plus 3/4" DOM bolt sleeve and rod end spacers.
-
Custom offset control arm/rod end spacers available upon request at no additional charge.
-
3/4" DOM sleeve steps up the 1/2" bolt diameter to 3/4", making it much stronger then 5/8" bolts and hardware.
-
Our exclusive design works with both mini tubbed cars and with stock wheel tubs. It does not intrude into the wheel tub area like some designs.
-

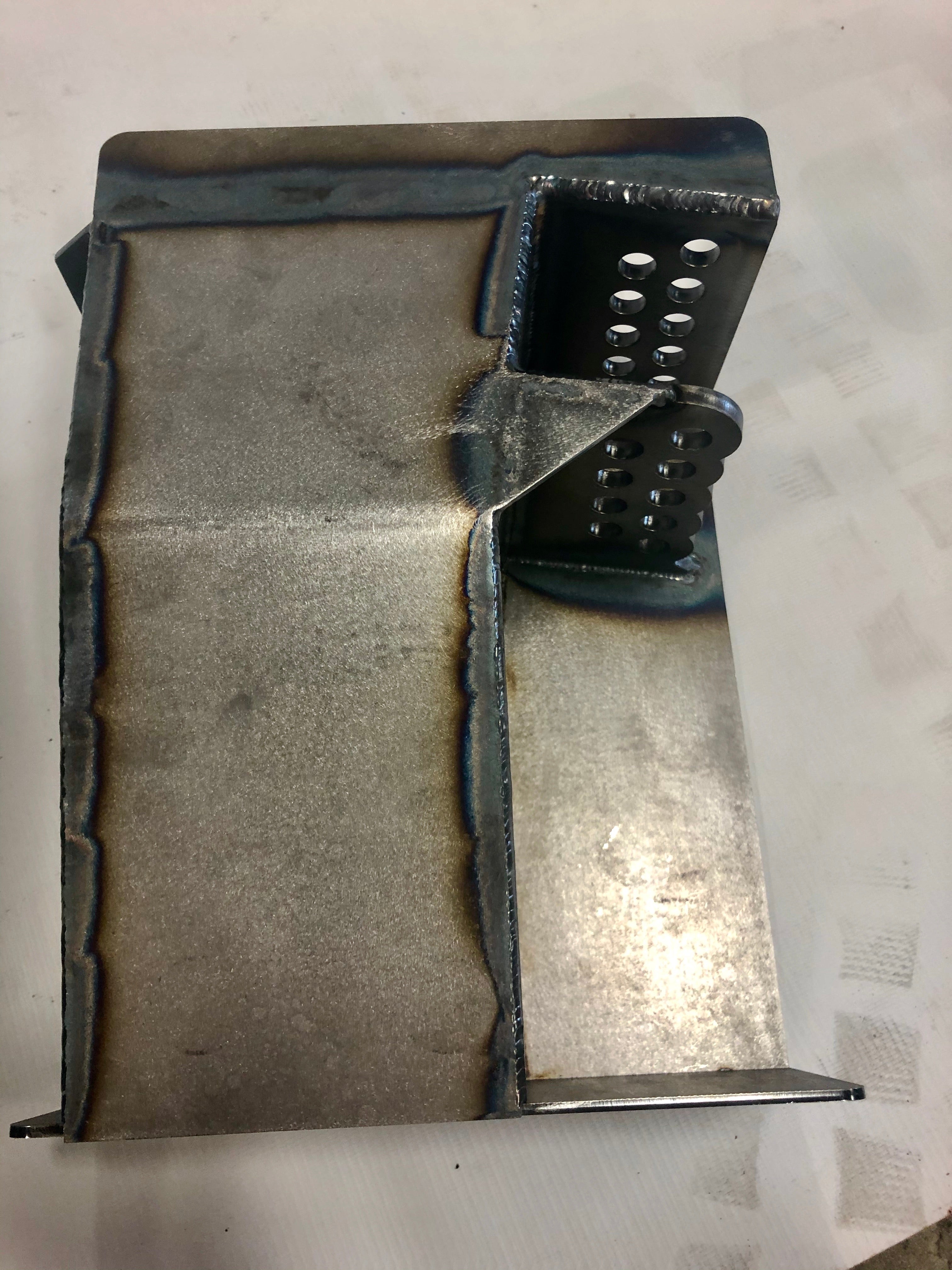

Lower edge of box wraps around the frame rail to promote additional strength and ease of installation alignment.
-
Reduced cross section width for lighter weight while maintaining superior strength.
-

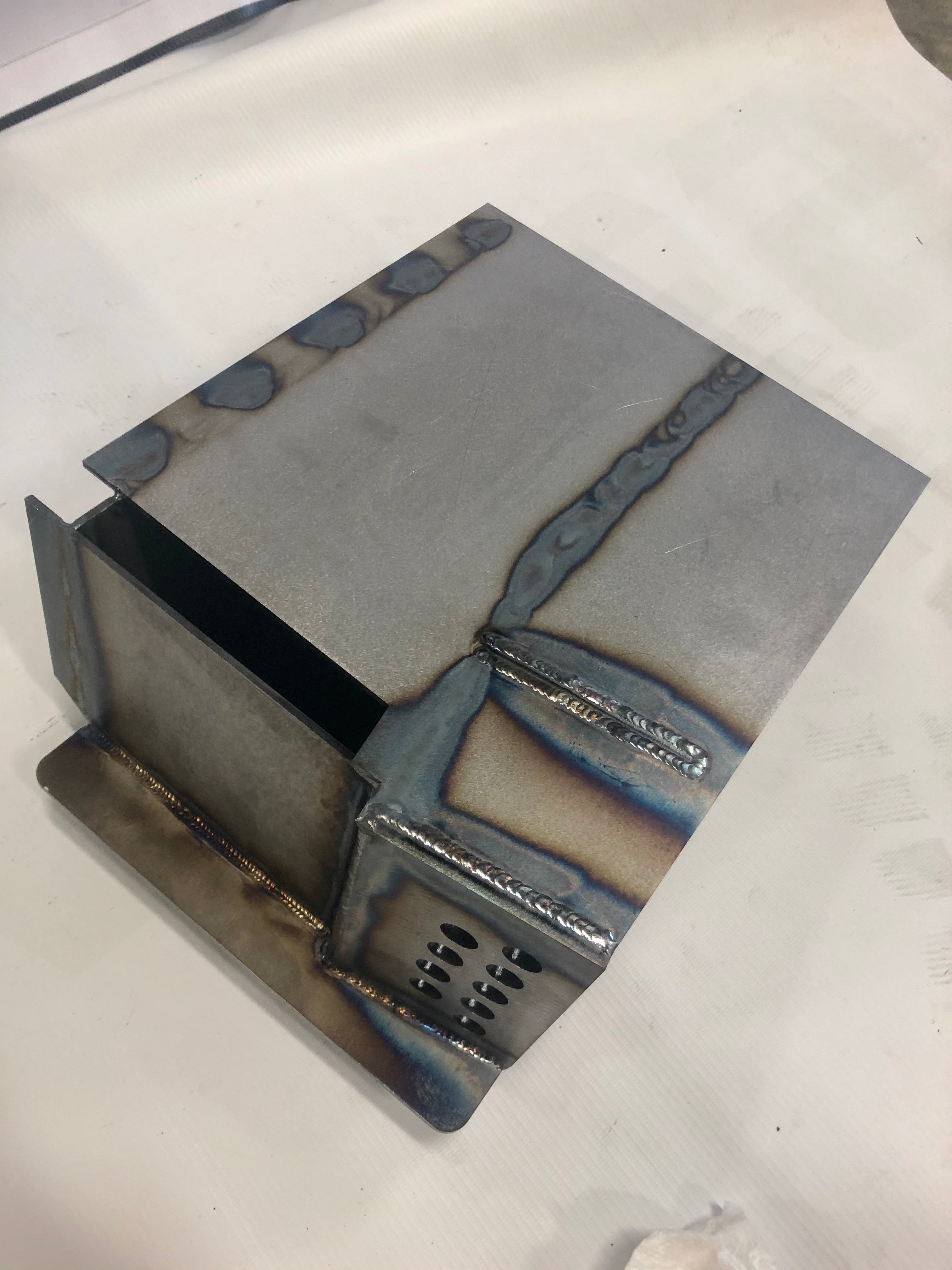

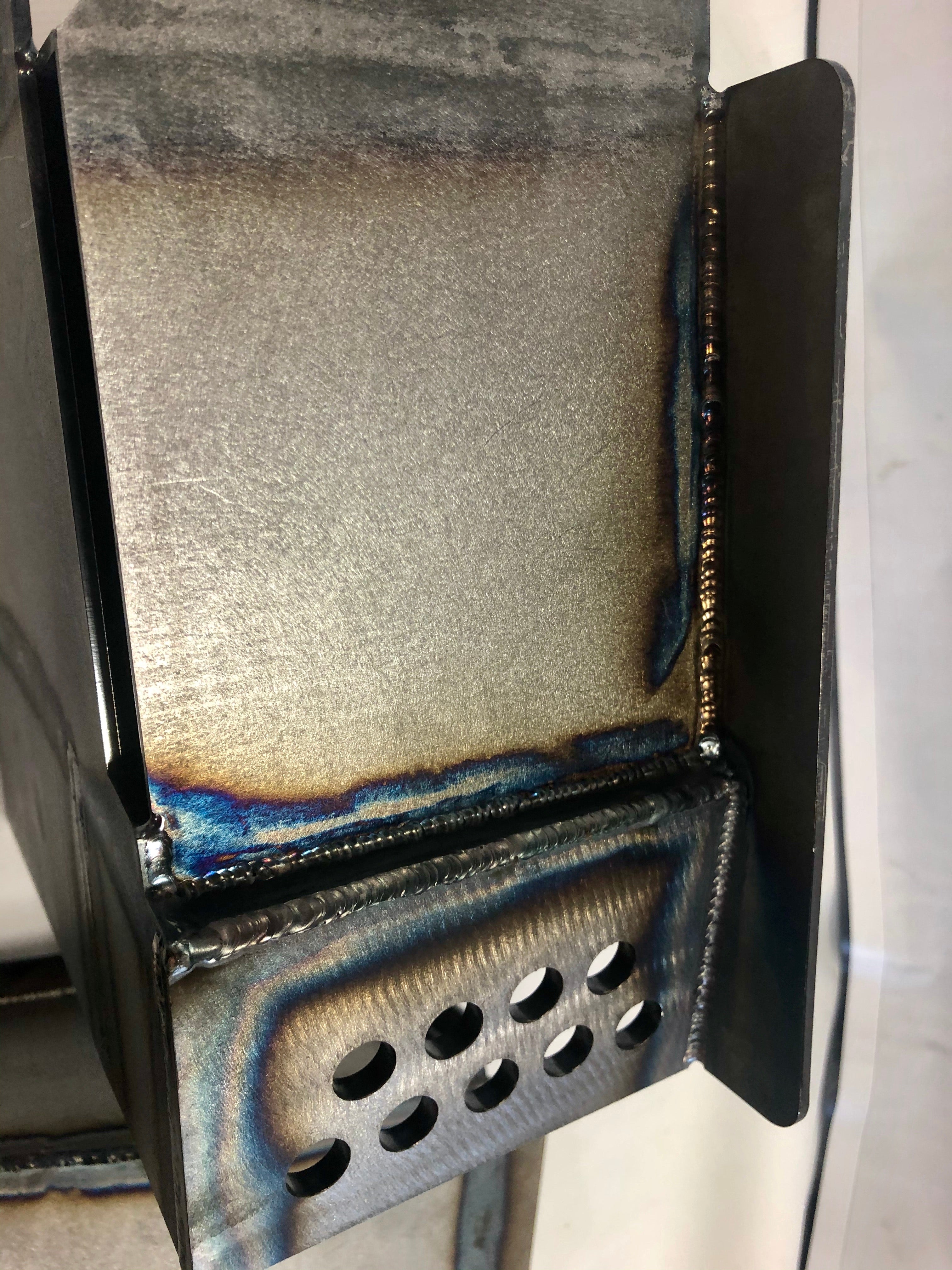

Boxes have 1/8 thick welding ledge around perimeter to make it easier to weld to the stock sheet metal areas of the car such as the OEM floor and rocker panel.
-
Inner frame rail side gusset to allow easier access to bolt for adjustment.
-

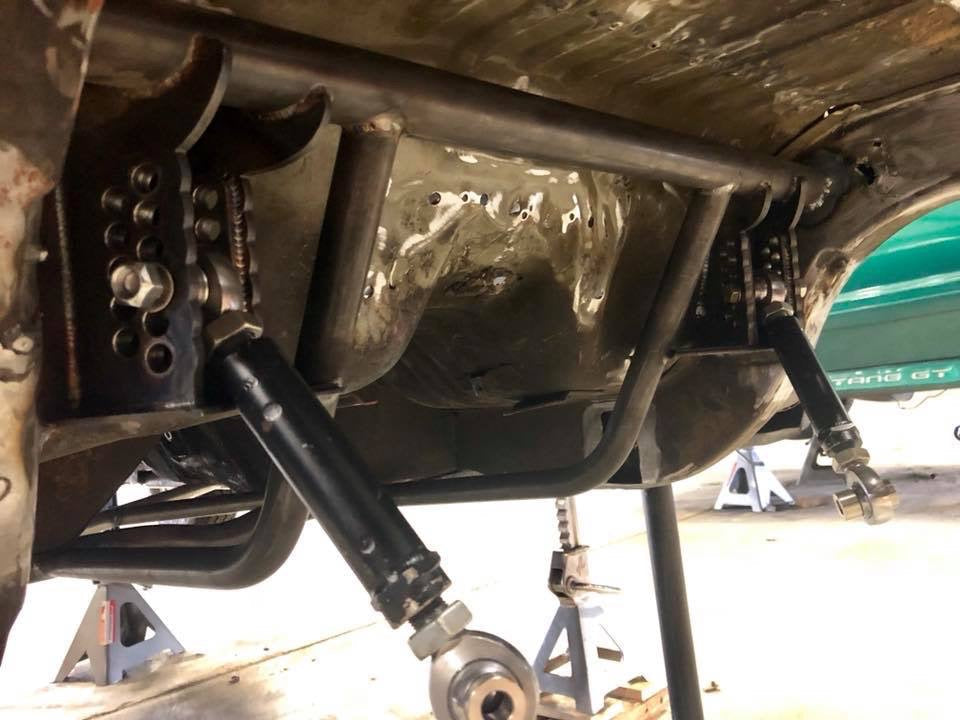

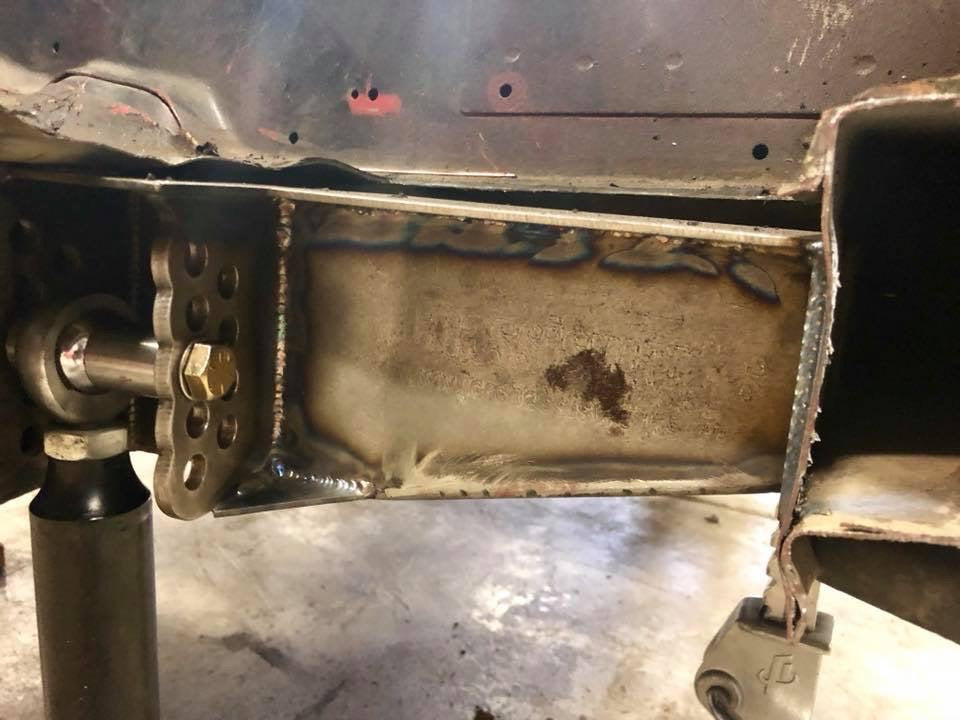

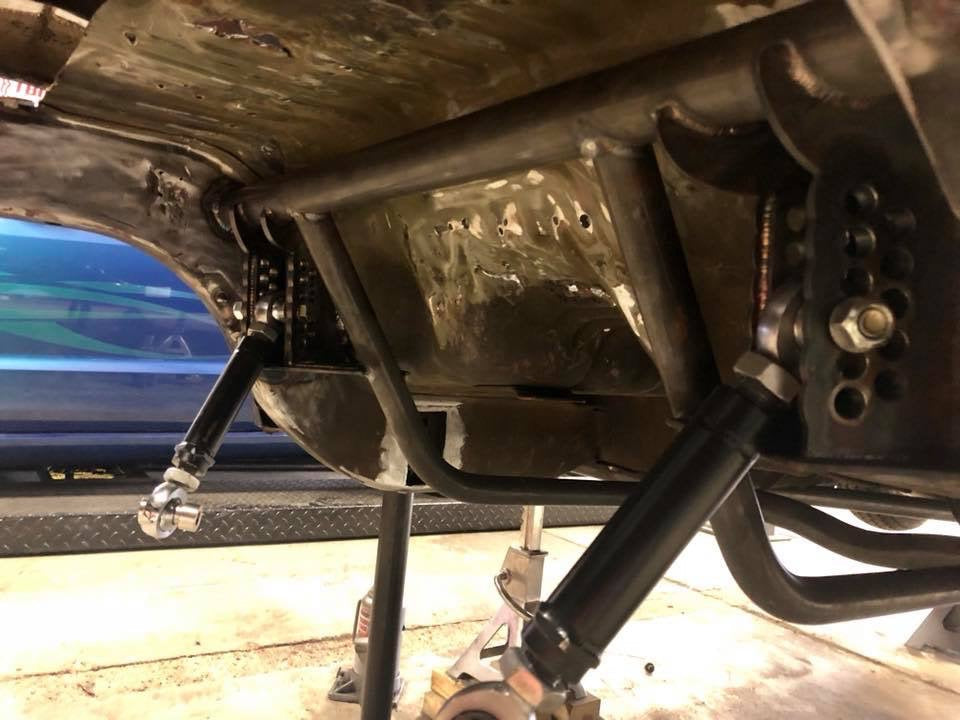

Boxes are constructed for ease of installation and alignment. In most cars they slide right in place with no modifications after removal of OEM torque boxes unless the car has been damaged is this area.
-
Adjustment holes will work with a wide selection of ride heights.
-
They are only intended for use with lower control arms that have a ¾” rod end on the box end, or on both ends. They will not work on control arms that are solid mount in the front, IE poly bushing type.
-
Welding required
- 1/4" Doubler Plates available for $100 upcharge
-
JCR CHASSISWORKS NO LONGER MANUFACTURES/SELLS THE JCR LOWER AND UPPER TORQUE BOXES FOR THE MUSTANG. WE HAVE SOLD THE PRODUCTION LINE AND RIGHTS TO MAG's FAB WORX. THEY CAN BE REACHED AT (662) 255-6052 FOR INFO AND ORDERS. YOU CAN EXPECT THE SAME QUALITY AND SERVICE FROM MAGS!
The JCR boxes are THE ORIGINAL non-OEM style/configuration replacement box. Do not fall for inferior copies! Our boxes are in many of the biggest name, fastest, record setting, class winning cars on the planet. They have been .99X 60' on a 275 radials, Adjustable IC Fox Body , SN95 and New Edge Upper Torque Box By MAG'S FAB WORX
The finest/strongest Mustang upper torque box replacement available

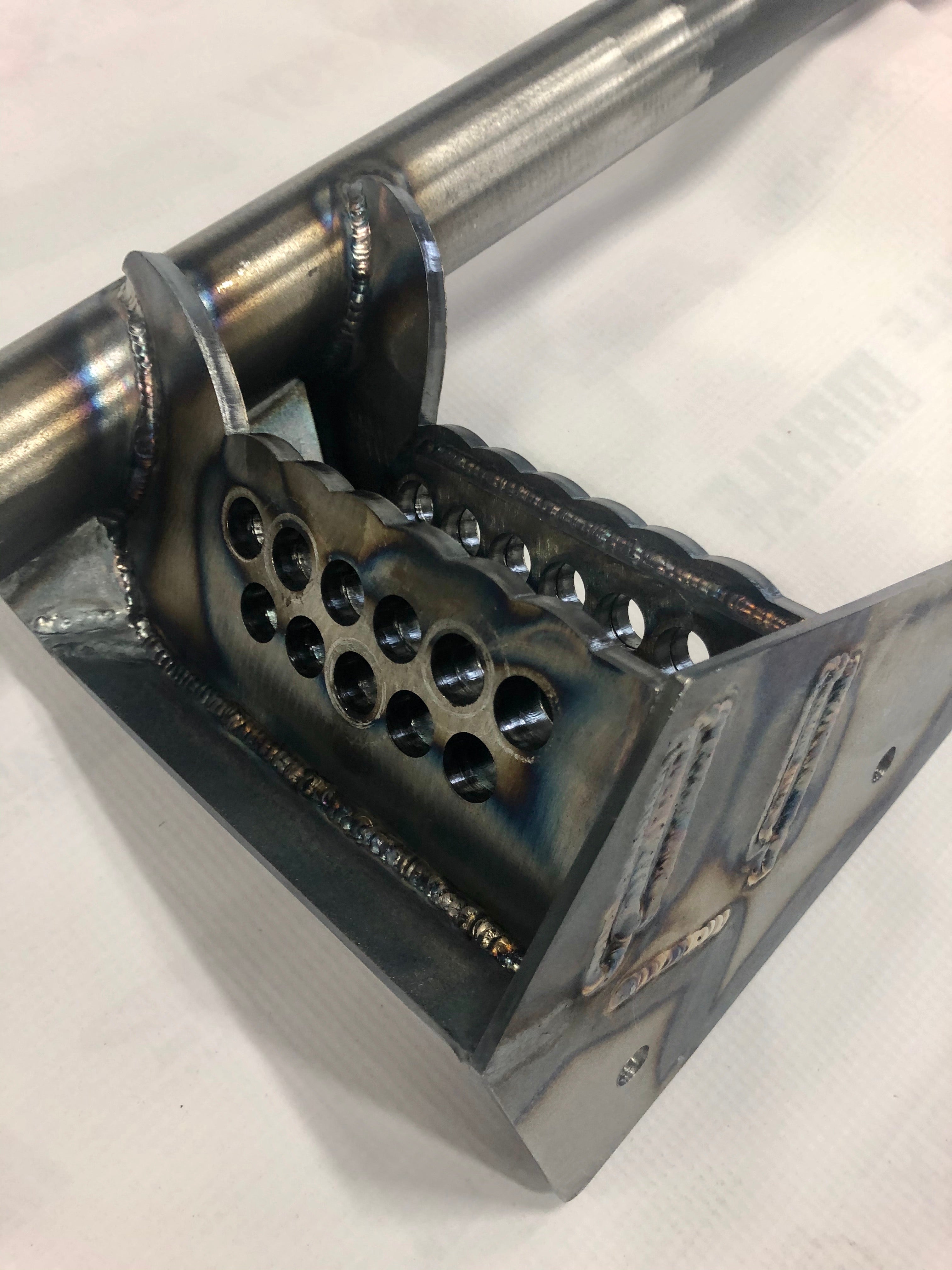

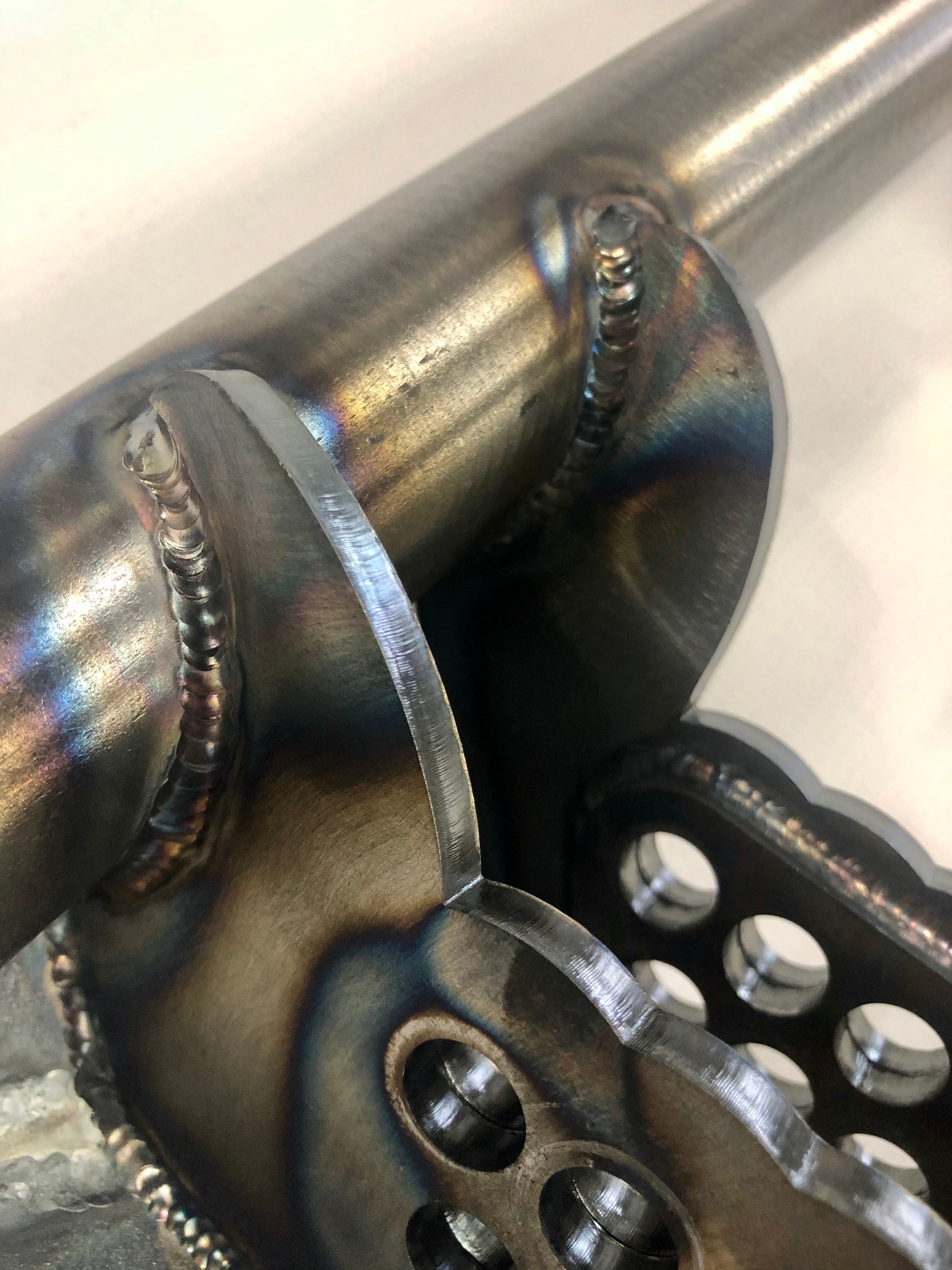

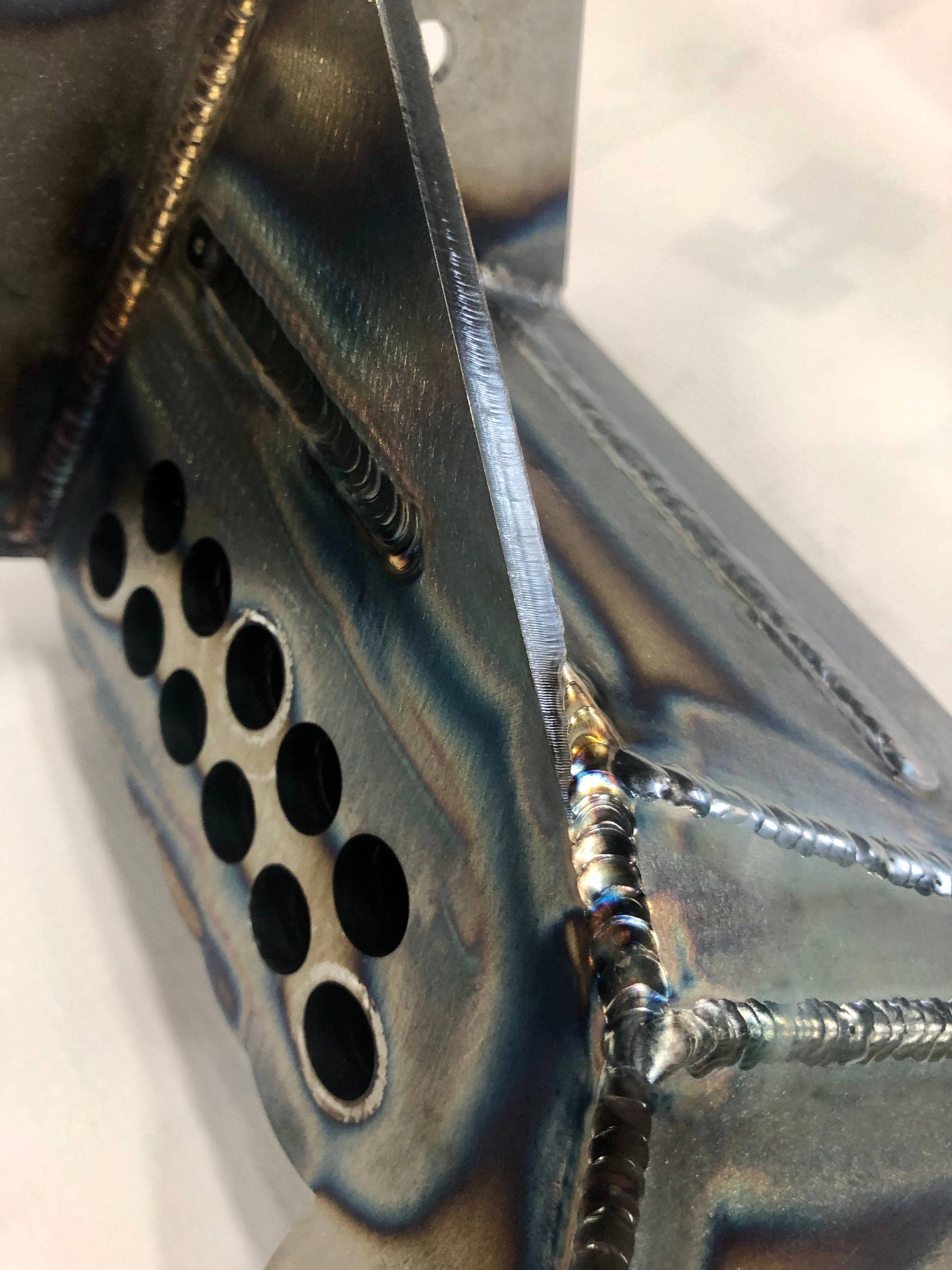

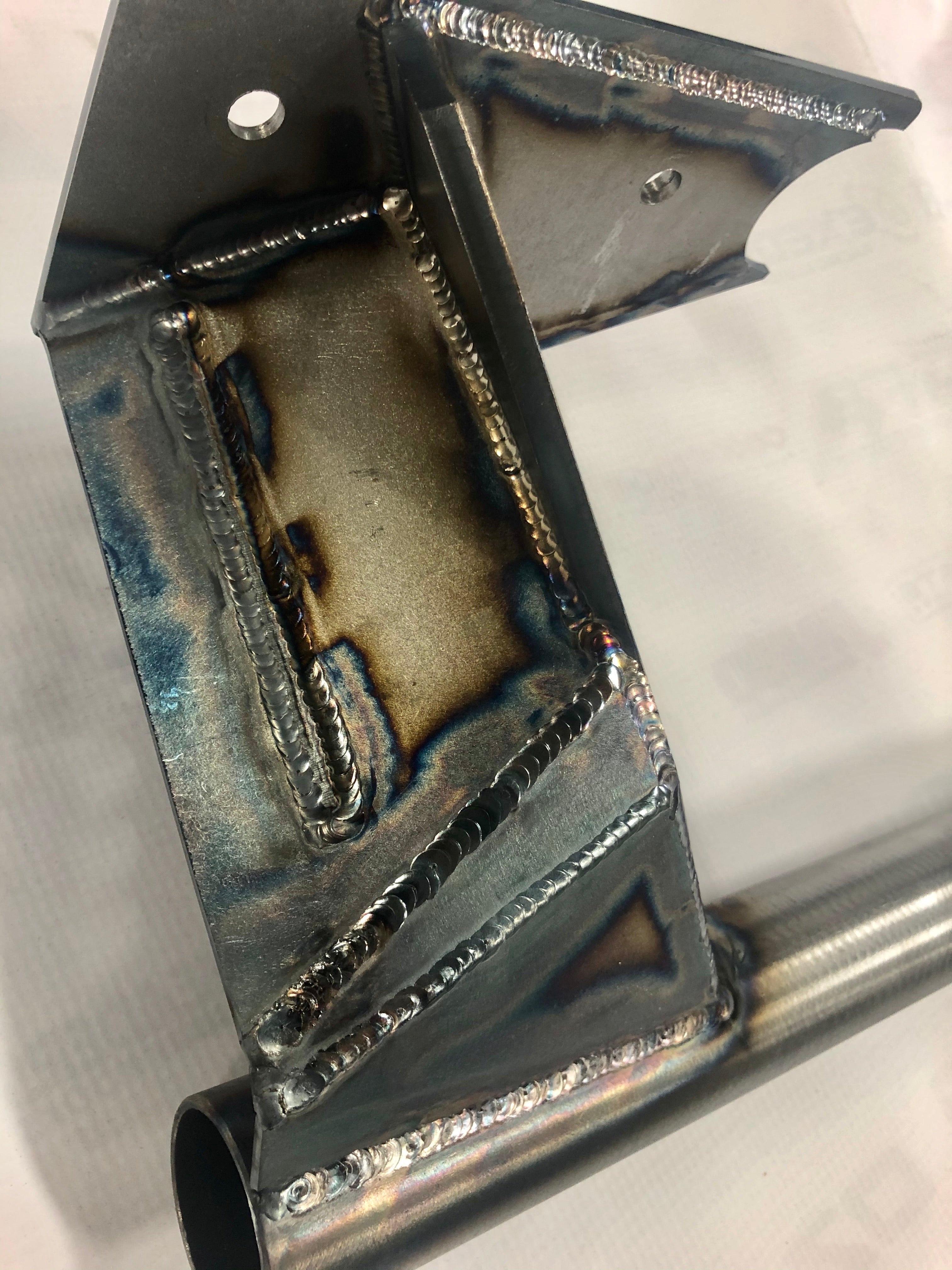

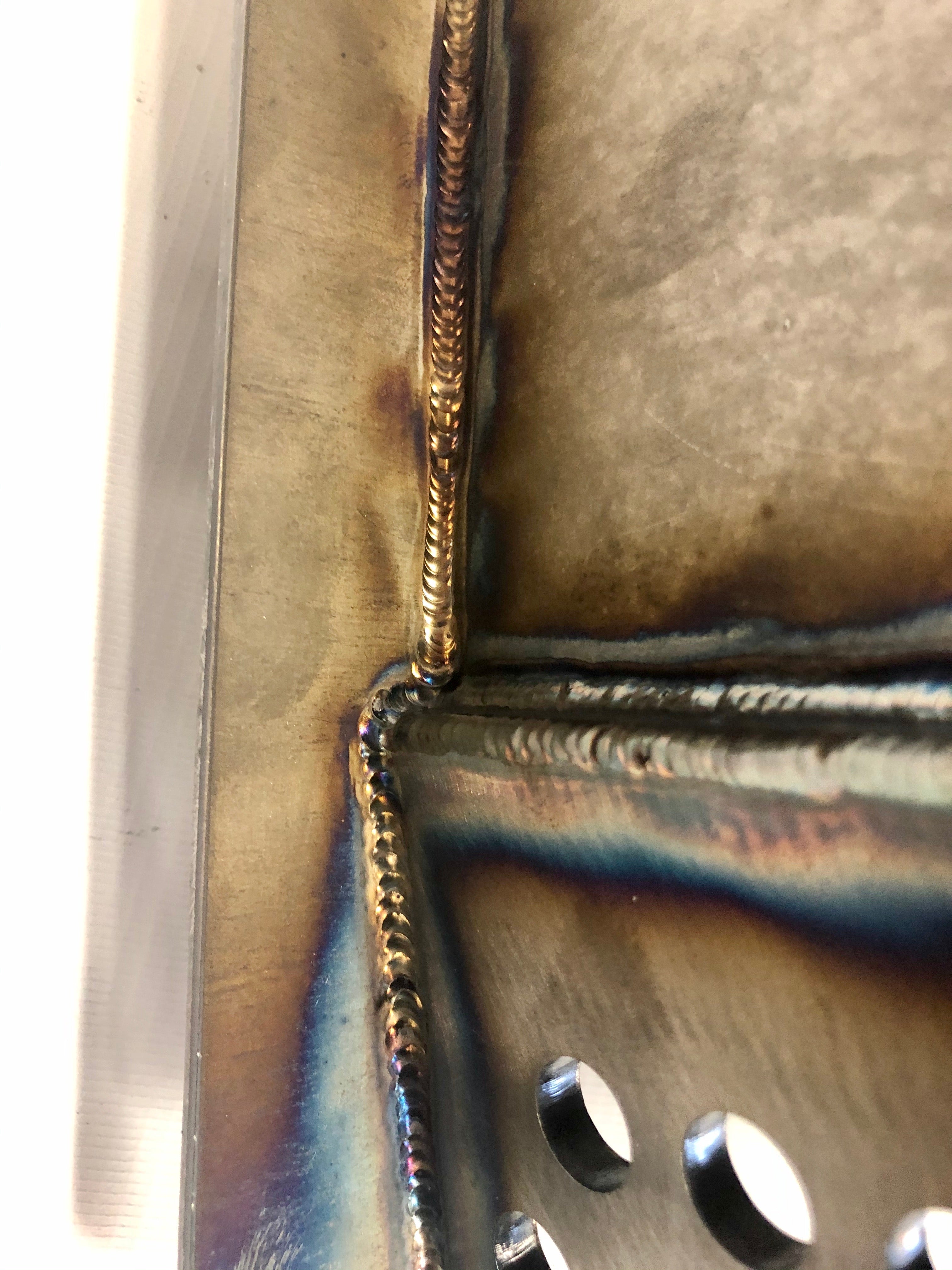

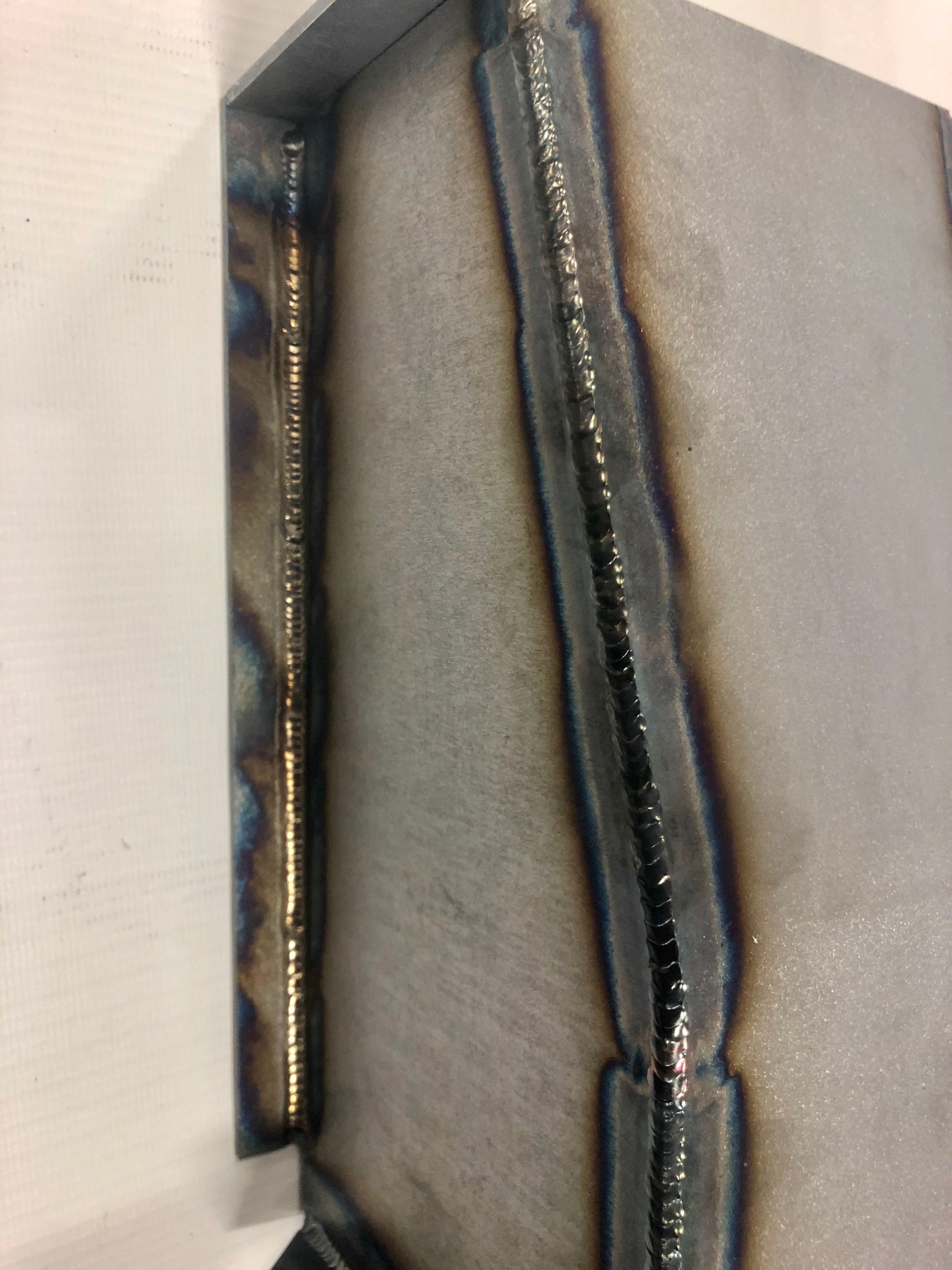

Our lightweight extreme duty box features 11, 1/2" adjustment holes with .300" promod hole spacing, which is important with the Mustangs' short upper control arms. We use .250" Chrome Moly doublers to reinforce the holes for high HP applications. We supply mounting hardware consisting of a 3/4" dia DOM rod end sleeve, and Chrome moly spacers to center/locate the rod end in the box. Our hardware works with 1/2 or 3/4 rod ends. Our unique interlocking design (see arrows in pics) ensures the tight, hard to reach areas are welded; not like some boxes that are only welded along the outer edges. We designed the box so it can be completely welded around the box perimeter for increased weld surface area. The box's plated and gusseted design allows it to be trimmed to fit if necessary to allow for cars with damage to the mounting area. The box is jig and fixture built/ tig welded and profiled to fit right out of the box. Our plated and gusseted design (we dont use a horizontal tube across the bottom) allows you to tie it in to the cage/chassis anyway needed to compliment your style/level of build. You dont have to be boxed in or constrained by a piece of manufacturer installed tube that may be in the wrong place for your build. You can use a straight piece of tube vertical (see pics) for non SFI spec cages or tie it in to the lower x member on your 25.3 or 25.5 spec chassis/cage so it becomes an integral part of your chassis, not an add on after thought. You can use the tie in tubes that go down to the lower 25.3 lower x member as the rear frame rail spec portion of the cert requirements, and then simply extend them back to the 'chute mount tube/rear chassis x member to complete the spec. . We designed the box so during the install it goes up to the rail, and back against the floor to make install a breeze (with a few simple measurements). Boxes come with hardware and detailed install instructions.
